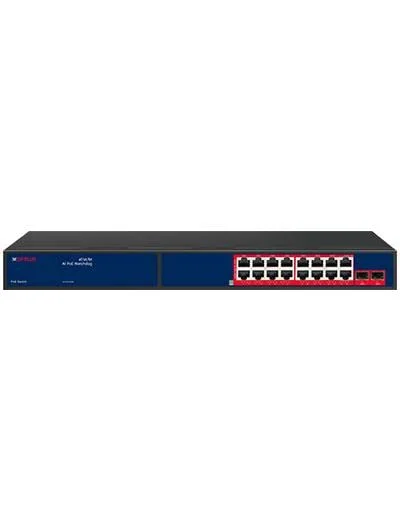

CP Plus 16 Port AI PoE Switch – CP-ANW-HP16G2F1-N30
The CP Plus CP-ANW-HP16G2F1-N30 is a powerful 16-port AI PoE switch designed for advanced IP surveillance and networking environments. It supports high-power PoE outputs up to 60W per port with full IEEE802.3af/at/bt compliance. The switch features intelligent PoE watchdog functionality that automatically detects and reboots unresponsive cameras or devices.
Key Features
16-Port PoE with High Power Output
Supports 16 PoE ports, including 1 BT port delivering up to 60W per port, ideal for power-hungry devices
AI PoE Watchdog Function
Automatically monitors and reboots non-responsive PoE-powered devices, ensuring system stability
Extended Distance Transmission
Fast Ethernet ports support up to 250 meters cable length without signal degradation
Combo Gigabit Uplink Ports
Includes 2 Gigabit RJ45 and 1 combo Gigabit SFP port for flexible uplink and fiber connectivity
Robust Protection
Equipped with 6KV lightning protection, 8KV surge protection, over-temperature, and short circuit protections
Plug & Play Zero Configuration
Automatically supplies power to connected devices with no manual setup needed
Specifications
| Model | CP-ANW-HP16G2F1-N30 |
| PoE Ports | 16 PoE Ports (15 × 10/100Mbps, 1 × 10/100/1000Mbps BT Port) |
| Uplink Ports | 2 × 10/100/1000Mbps RJ45, 1 × 1000Mbps SFP (Combo) |
| PoE Standard | IEEE 802.3af/at/bt |
| Max PoE Power Output | 60W per port |
| Switch Capacity | 12.8 Gbps |
| LED Indicators | 16 × Link/Act, 1 × G1, 1 × G2/SFP2, 1 × PoE-MAX, 1 × Power |
| MAC Address Table | 8K Entries |
| Input Voltage | AC 180~240V |
| Surge Protection | 6KV Lightning, 8KV Surge |
| Operating Temperature | -30°C ~ 60°C |
| Storage Temperature | -40°C ~ 70°C |
| Operating Humidity | 10%~90% (non-condensing) |
| Dimensions | 430mm × 180mm × 45mm |
| Weight | Not specified |
Why Choose CP Plus 16 Port AI PoE Switch
delivers up to 60w per port, perfect for high-power devices like ptz cameras or access points
built-in ai watchdog function auto-reboots unresponsive devices for uninterrupted performance
supports long-distance transmission up to 250m on fe ports for flexible installations
includes dual gigabit rj45 and combo sfp uplinks for efficient data throughput
ensures safety with full electrical protection and plug-and-play deployment
