CP Plus 24 Port AI PoE Switch 2 Giga and 1 Giga SFP Uplink Port
Original price was: KSh 42,000.00.KSh 38,500.00Current price is: KSh 38,500.00.
CP Plus 24 Port AI PoE Switch 2 Giga and 1 Giga SFP Uplink Port
| Ports | 24 PoE Ports + 2 RJ45 + 1 SFP |
| PoE Standard | IEEE 802.3af/at |
| Total PoE Budget | 250W |
| Transmission Distance | Up to 250m |
| Uplink Ports | 2 × RJ45 (Gigabit), 1 × SFP Combo |
| AI Function | Auto-Reboot for offline devices |
| Protection | 6KV Lightning, 8KV Surge |
| Setup | Plug & Play |

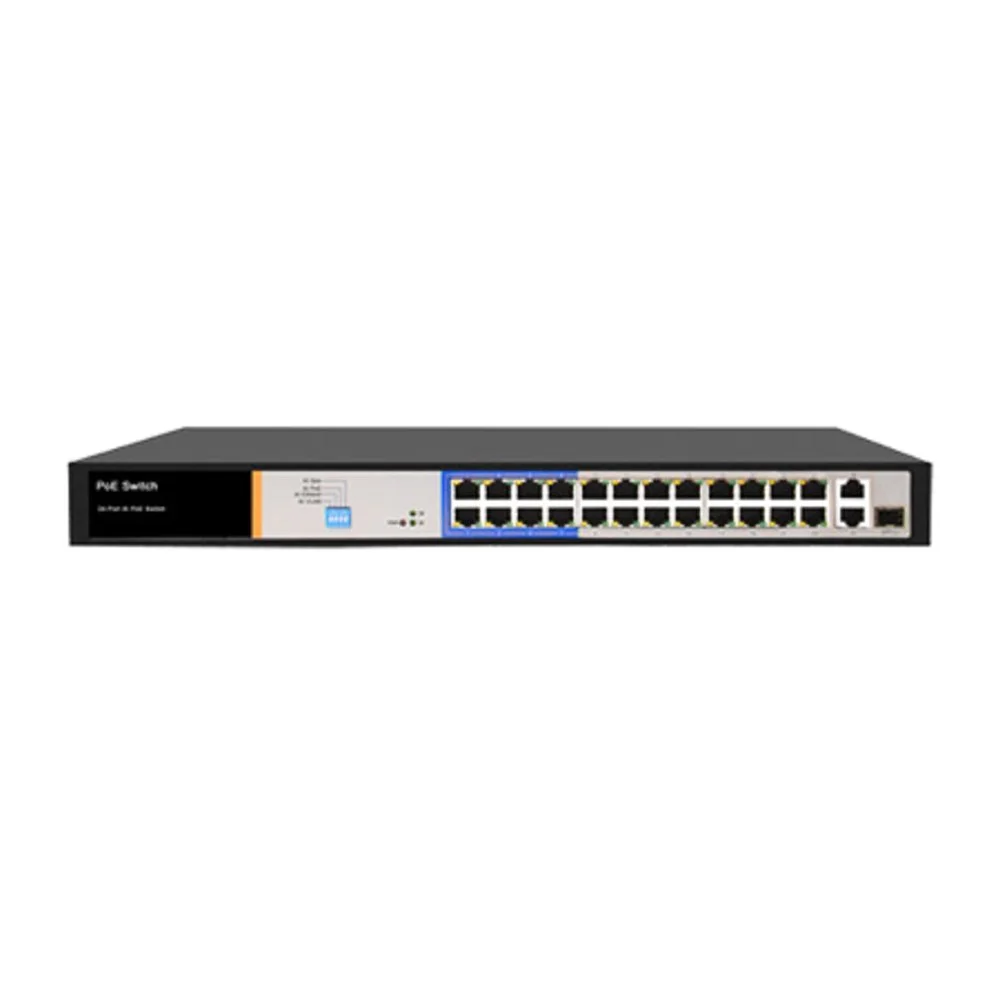

CP Plus 24 Port AI PoE Switch – CP-ANW-HP24G2F1-N30
The CP Plus CP-ANW-HP24G2F1-N30 is a high-performance 24-port AI PoE switch built for advanced surveillance and enterprise networking. It features 24 Fast Ethernet PoE ports, along with two Gigabit RJ45 uplink ports and one Gigabit SFP Combo port. Designed for robust performance, it supports extended 250m transmission, AI-powered PoE watchdog for auto-recovery of offline devices, and high-level protection against surges and lightning.
Key Features
24 AI PoE Ports with Watchdog Support
All 24 ports support IEEE802.3af/at PoE standards with AI watchdog functionality to auto-reboot non-responsive devices.
Extended Range Transmission
Supports up to 250 meters cable run on PoE ports for long-distance device connection.
High-Speed Uplinks
Comes with 2 Gigabit RJ45 uplink ports and 1 Gigabit SFP Combo port for fast and reliable network backbone.
Built-in Protection
6KV lightning and 8KV surge protection safeguard the switch and connected devices from power fluctuations.
Plug-and-Play Setup
No configuration needed—simply connect IP cameras, access points, or VoIP devices, and it automatically powers them.
Durable Metal Housing
Strong, compact metal body with optimized heat dissipation, perfect for wall-mount or desktop installations.
Specifications
| Model | CP-ANW-HP24G2F1-N30 |
| PoE Ports | 24 × 10/100Mbps RJ45 Ports with PoE |
| Uplink Ports | 2 × 10/100/1000Mbps RJ45 + 1 × 1000Mbps SFP (Combo) |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Total PoE Budget | Up to 250W |
| Switching Capacity | 7.2 Gbps |
| PoE Watchdog Function | Yes (AI Auto-Reboot) |
| MAC Address Table | 8K |
| Lightning Protection | 6KV |
| Surge Protection | 8KV |
| Transmission Distance | Up to 250m (PoE Ports) |
| Operating Temp. | -10°C ~ +55°C |
| Storage Temp. | -40°C ~ +70°C |
| Humidity | 10% ~ 90% (non-condensing) |
| Power Input | AC 100–240V, 50–60Hz |
| Dimensions | Approx. 440mm × 180mm × 45mm |
| Weight | Varies; Approx. 3.5kg (without packaging) |
Why Choose CP Plus 24 Port AI PoE Switch
supports up to 24 poe devices, ideal for cctv or wireless access points
intelligent watchdog feature auto-recovers frozen ip cameras or devices
combo sfp and dual rj45 uplinks offer flexible and high-speed data routing
long-distance transmission up to 250 meters simplifies complex installations
equipped with surge and lightning protection for safe outdoor/indoor use
