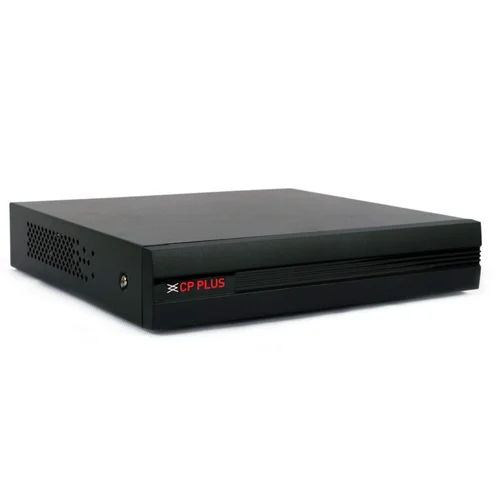

CP Plus 4 Ch 1080P Lite Cosmic HD DVR

Original price was: KSh 4,500.00.Current price is: KSh 4,300.00.

CP Plus 4 Ch 1080P Lite Cosmic HD DVR


Video Inputs	4 BNC + 2 IP (Hybrid Mode)
Max IP Resolution	6MP per IP channel
Compression Format	AI-Coding / H.265+ / H.265
Storage	1 SATA up to 6TB
Output	HDMI (1080p), VGA
Network Support	RJ-45 (100Mbps), ONVIF
USB Ports	2 × USB 2.0
Operating Temp	-10°C ~ +45°C
Power Supply	12V DC / 1.5A
Size/Weight	198×203×41.5 mm / 0.55kg

Category: CCTV Accessories

Description
Reviews (0)

CP Plus 4 Ch 1080P Lite Cosmic HD DVR

The CP Plus CP-UVR-0401F1-HC is a high-efficiency 4-channel DVR supporting hybrid video inputs including HDCVI, AHD, TVI, CVBS, and IP, with up to 6MP resolution per IP channel. Engineered with AI coding and H.265 compression, it ensures optimal bandwidth usage and storage efficiency.

Key Features

Multi-format Video Input
Supports HDCVI, AHD, TVI, CVBS, and IP camera formats
Up to 6 IP Camera Inputs (up to 6MP each)
Hybrid mode supports 4 analog + 2 IP channels with 32Mbps total bandwidth
AI-Coding and H.265 Compression
Reduces storage and bandwidth requirements without compromising video quality
Smart Motion Detection (SMD Plus)
Supports SMD Plus on up to 4 analog channels for intelligent alerts
Full HD Output with Dual Display
Simultaneous 1080P HDMI and VGA outputs
Expandable Storage and Connectivity
Supports 1 SATA HDD up to 6TB, 2 USB 2.0 ports, and full protocol suite including ONVIF
Mobile and CMS Software Support
Compatible with iCMOB, gCMOB for mobile and KVMS Pro for desktop viewing

Technical Specifications


Model	CP-UVR-0401F1-HC
Processor / OS	Embedded Processor / Embedded LINUX
Video Input	4 BNC + 2 IP (up to 6MP each)
Video Output	1 HDMI, 1 VGA
Resolution Support	5M-N, 4M-N, 1080p, 720p, CIF, D1, 960H
Compression	AI-Coding / H.265+ / H.265 / H.264
Max Bitrate per Channel	32 kbps–6144 kbps
Audio Input / Output	1 in / 1 out (RCA)
Audio Compression	G.711A, G.711U, PCM
Display Split	1/4 channels
Motion Detection	396 Zones (22 × 18 grid)
Max IP Cameras	6 channels (hybrid)
Network Port	1 × RJ-45 10/100Mbps
USB Ports	2 × USB 2.0
Hard Disk Support	1 SATA port, up to 6TB
Backup Mode	USB Device / Network
User Access	Up to 128 users
Protocols Supported	HTTP, HTTPS, TCP/IP, IPv4/6, RTSP, FTP, SMTP, NTP, ONVIF, SNMP, UPnP, PPPoE, DDNS
Power Supply	DC 12V / 1.5A
Power Consumption	<4W (without HDD)
Operating Temperature	-10°C to +45°C
Dimensions / Weight	198 × 203 × 41.5 mm / 0.55 kg

Why Choose CP Plus CP-UVR-0401F1-HC

• supports up to 6MP IP cameras
• advanced AI compression technology
• full hybrid video input compatibility
• simultaneous HDMI and VGA output
• supports 6TB hard disk storage
