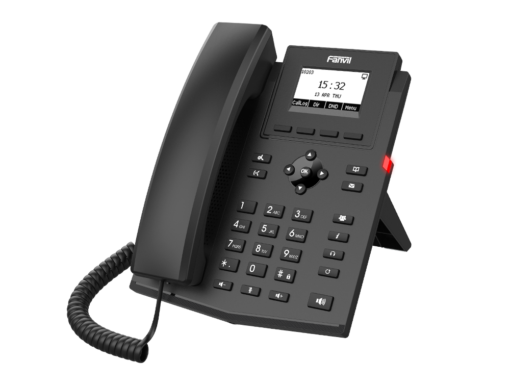

Fanvil X301W Entry Level IP Phone

X301W is a cost-effective, multifunctional Wi-Fi IP phone designed for seamless business communication. It features a 2.3-inch dot-matrix display with a 132×64 pixel resolution, supports 2 SIP lines, and enables 6-way audio conferencing, offering a smooth and intuitive user experience.

With features like HD audio and dual-band Wi-Fi support (2.4GHz & 5GHz), the X301W ensures reliable connectivity and high-quality voice communication—making it an ideal solution for modern enterprise environments.

Key Features

• 2.3-inch 128×48 pixel dot-matrix display

• HD audio with support for G.722 and Opus codecs on handset and speakerphone

• Built-in dual-band Wi-Fi: 2.4GHz (802.11 b/g/n) & 5GHz (802.11 a/n/ac)

• Supports 6-way local audio conferencing

• EHS support for wireless headsets (Plantronics & Jabra compatible)

• Dual 10/100 Mbps Ethernet ports with PoE support

• Desktop and wall-mountable installation options

Technical Specifications

General

• 2 SIP accounts

• HD Voice (handset, speakerphone, and headset)

• Built-in 2.4GHz & 5GHz Wi-Fi

• PoE-enabled

• Handset, hands-free, and headset modes

• Optional external power supply

• Dot-matrix display

• Mounting: Desktop stand or wall mount

Phone Features

• Local phonebook (up to 1000 entries)

• Remote phonebook support (XML/LDAP, up to 1000 entries)

• Call logs (In/Out/Missed – 600 entries)

• Blocked and allowed call lists

• Voice message waiting indication (VMWI)

• Programmable DSS/soft keys

• Network time synchronization

• EHS headset support:

  • Plantronics (via APD-80 EHS cable)

  • Jabra (via Fanvil EHS20 cable)

• Call recording (via server)

• Action URL / Active URI

• uaCSTA support

Call Handling

• Call: Make / Answer / Reject

• Mute / Unmute microphone

• Call hold / resume

• Call waiting

• Intercom

• Caller ID display

• Speed dial

• Anonymous call (hide caller ID)

• Call forwarding (Always / Busy / No Answer)

• Call transfer (Attended / Unattended)

• Call parking / pick-up (server-dependent)

• Redial

• Do Not Disturb (DND)

• Auto-answer

• Voicemail support (via server)

• 6-way conference calling

• Hotline

• Hot desking

Audio

• HD microphone and speaker

• Wideband ADC/DAC (16kHz sampling rate)

• Narrowband codecs: G.711a/u, G.723.1, G.726, G.729A/B, iLBC

• Wideband codecs: G.722, Opus

Network

• Dual 10/100 Mbps Ethernet ports (bridged for PC bypass)

• IP Protocols: IPv4 / IPv6

• IP Configuration: Static IP / DHCP / PPPoE

• Wi-Fi Security: WPA / WPA2-PSK / 802.1X EAP

• Network Access Control: 802.1X

• VPN support: L2TP / OpenVPN

• VLAN tagging

• LLDP

• QoS (Quality of Service)

• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
