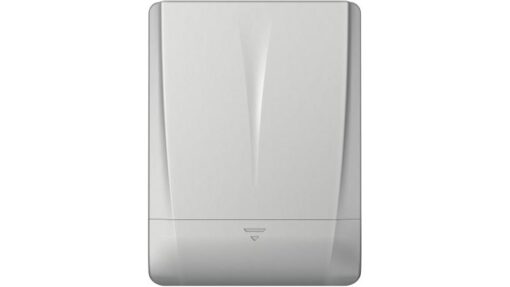

Hikvision Wired Seismic Detector – DS-PDSKM-VG3

The Hikvision Wired Seismic Detector (DS‑PDSKM‑VG3) is a shock sensor that detects vibration, drilling, or forced entry within a 5 m range. It offers 8 adjustable sensitivity levels through a DIP switch, so users can fine‑tune detection to reduce false alarms. In addition, its IK10-rated metal housing makes it highly resistant to tampering and strong enough to endure tough environments.

Moreover, the detector uses digital noise filtering, dual tamper protection, and displacement detection to deliver accurate performance. LED indicators clearly show alarm and noise status, while the normally closed (NC) output allows easy system integration. Because it is compact and energy‑efficient, it is simple to install and reliable for long‑term use.

Key Features:

• Seismic detection range up to 5 m
• 8 adjustable sensitivity levels via DIP switch
• Digital noise filtering for improved accuracy
• Dual tamper protection (front and rear)
• Displacement and rapid temperature detection
• Normally Closed (NC) alarm output
• LED indicators: blue (alarm), red (noise)
• Power supply: 9–16 V DC, ≤17 mA
• Operating range: –40 °C to +70 °C, 10–90% humidity
• IK10-rated metal housing for durability
• Compact size: 60 × 80 × 19.5 mm, weight ~226 g
