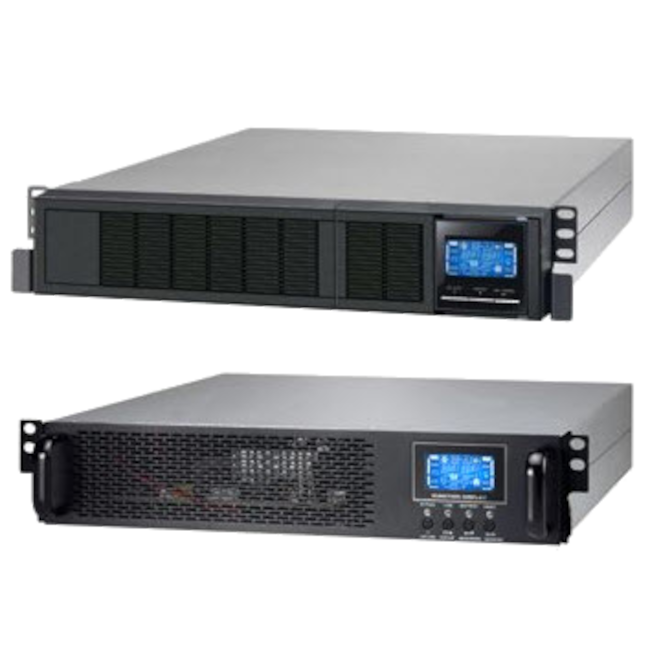

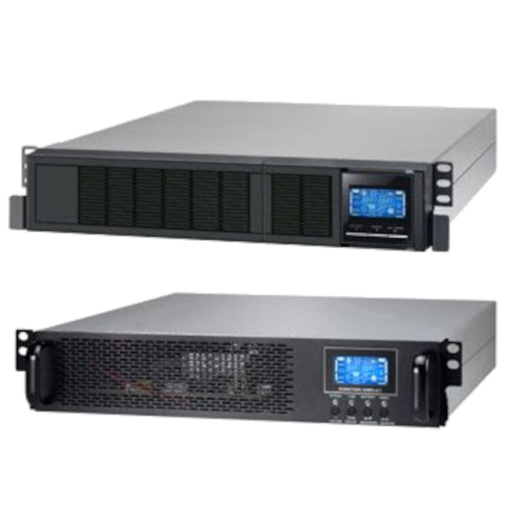

Mecer ME-2000-WPRU 1600W ON-LINE UPS Rack Mount 2U

Specifications:

• Input Voltage Range:

  • 55-150 VAC or 110-300 VAC (at 50% load)

  • 85-140 VAC or 160-280 VAC (at 100% load)

• Nominal Voltage: 100/110/115/120/127 VAC or 200/208/220/230/240 VAC

• Frequency Range: 40 Hz ~ 70 Hz

• Power Factor: ≥ 0.99 at Nominal Voltage (100% load)

• Voltage Regulation: ± 1%

• Output Voltage: 100/110/115/120/127 VAC or 200/208/220/230/240 VAC

• Frequency Range (Battery Mode): 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz

Transfer Time:

• AC Mode to Battery Mode: Zero

• Inverter to Bypass: 4 ms (Typical)

Waveform (Battery Mode): Pure Sine Wave

• Current Crest Ratio: 3:1

• Harmonic Distortion:

  • ≤ 3% THD (Linear Load)

  • ≤ 6% THD (Non-linear Load)

• Frequency Range (Synchronized Range): 47-53 Hz or 57-63 Hz

Efficiency:

• Battery Mode: 87%

• AC Mode: 89%

Battery:

• Battery Type: 12 V / 9 AH

• Charging Current (max.): 1A

• Charging Voltage: 54.7 VDC ± 1%

• Number of Batteries: 4

• Typical Recharge Time: 4 hours to 90% capacity

Indicators:

• LCD Panel: Displays load level, battery level, AC mode, battery mode, bypass mode, and fault indicators.

Alarms:

• Battery Mode: Sounding every 4 seconds

• Low Battery: Sounding every second

• Overload: Sounding twice every second

• Fault: Continuously sounding

Environmental Conditions:

• Operating Humidity: 20-90% RH @ 0-40°C (non-condensing)

• Noise Level: Less than 50 dB at 1 Meter

Physical Dimensions:

• Dimensions (D x W x H): 410 x 438 x 88 mm [2U]

• Net Weight: 19 kg

Features:

• Voltronic Power Winner Pro Online Pure Sine Wave UPS:

  • High reliability with online double-conversion technology

  • Comes with monitoring software for easy management
