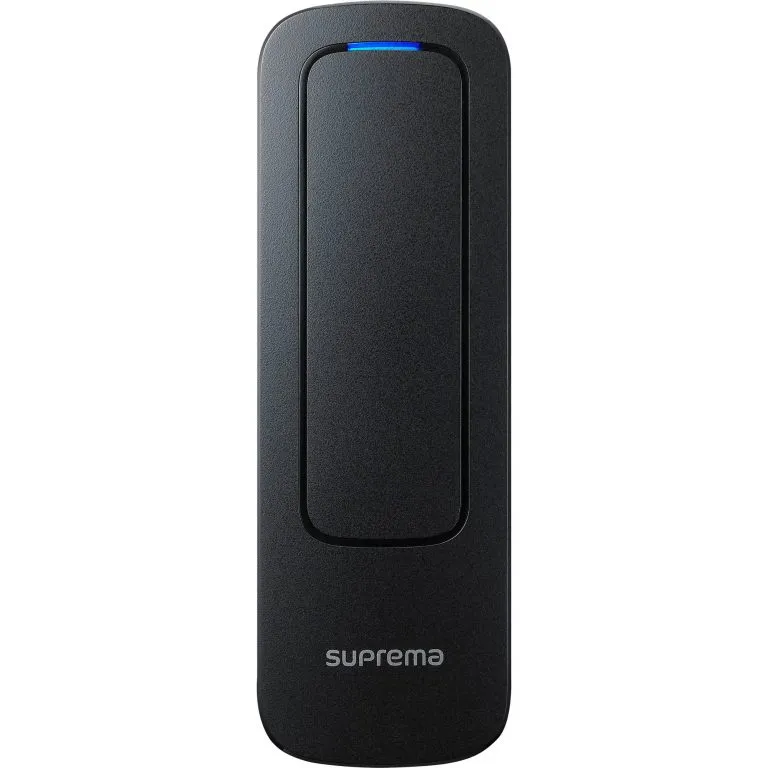

Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader

The Suprema XP2-MDPB XPass 2 Outdoor Compact RFID Reader is a rugged, high-performance access control reader built for outdoor environments. Its slim, mullion-type design makes it perfect for narrow door frames or metal frames, while maintaining top-tier durability and flexibility.

This RFID reader supports both LF (125kHz EM) and HF (13.56MHz MIFARE, DESFire EV1/EV2/EV3, FeliCa) credentials. It also offers mobile access via BLE and NFC, allowing users to unlock doors with their smartphones. The XP2-MDPB is rated IP65/IP67 for water and dust resistance and IK08 for impact protection—built to perform even in harsh weather and high-traffic areas.

Powered by a 1GHz processor with 4GB flash memory, it supports up to 200,000 users and stores 1,000,000 event logs. Communication interfaces include RS-485, Wiegand, and Ethernet, and it’s fully OSDP v2 compliant. Power can be supplied via 12V/24V DC or standard PoE.

Key Features:

• Dual-frequency RFID: EM (125kHz), MIFARE, DESFire, FeliCa (13.56MHz)

• Mobile access via NFC and BLE

• IP65/IP67 & IK08-rated for outdoor use

• 1GHz CPU with 4GB Flash

• 200,000 users, 1M log capacity

• Interfaces: RS-485, Wiegand, Ethernet

• OSDP v2 support

• Power: 12V/24V DC or PoE

• Size: 48 x 145 x 27 mm

• Model: XP2-MDPB
