XL600-C-B Cat 6e Network Cable
Ensure stable, high-speed connections with the XL600-C-B, a Cat 6e twisted-pair cable engineered for professional video surveillance and data applications. Designed for durability, it supports smooth signal transmission in harsh environments.
Key Features
4-Pair Twisted Construction – Provides low crosstalk and consistent performance.
23 AWG Copper-Clad Aluminium – Optimized for strength and conductivity.
PVC Outer Sheath – Customised protection against wear and environmental stress.
Extended Temperature Range – Reliable from -20 °C to +60 °C.
Meets International Standards – YD/T1019-2013, ISO/IEC 11801, ANSI/TIA/EIA 568-B.
Specifications
| Category | Details |
|---|---|
| Model Number | XL600-C-B |
| Product Type | Cat 6e Cable |
| Wires Specs | 4 × 2 × 0.50 mm |
| Conductor | Copper-clad aluminium, Ø 0.50 ± 0.01 mm |
| Wire Gauge | 23 AWG |
| Insulation | HDPE, Ø 1.0 ± 0.05 mm |
| Sheath / Jacket | LDPE, OD 5.8 ± 0.30 mm |
| Color Code | Blue/white-blue, orange/white-orange, green/white-green, brown/white-brown |
| Electrical Resistance | ≤ 9.38 Ω/100 m @ 20 °C |
| Insulation Resistance | ≥ 5000 MΩ-km @ 20 °C |
| Dielectric Strength | 1000 V DC, 1 min no breakdown |
| Frequency | 250 MHz |
| Delay Difference | ≤ 45 ns |
| Mechanical Strength | Jacket tensile ≥ 13.5 MPa; elongation ≥ 150% |

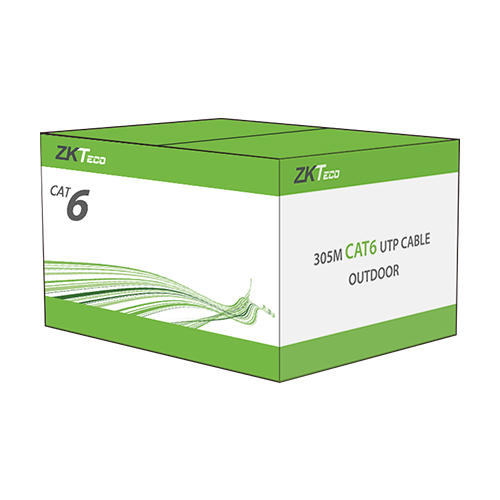

| Package | Pull box, 305 m, carton 395 × 395 × 235 mm |
| Part Number | XL600-C-B |
| Description | Cat 6e; 4 × 2 × 0.50 mm, OD 6.5 ± 0.30 mm |
Why Choose the XL600-C-B
Consistent Cat 6e bandwidth up to 250 MHz.
Superior noise immunity for surveillance & data.
Rugged LDPE jacket ensures long service life.
Certified to multiple global cabling standards.
Convenient 305 m pull-box packaging.
