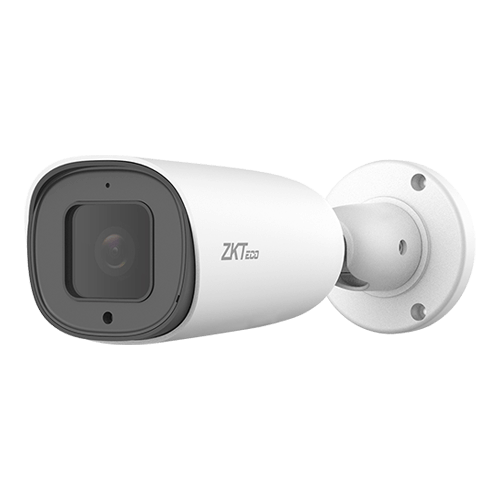

ZKTeco BL-852O38S-S5 2MP Lite Series Motorized Camera
The BL-852O38S-S5 from ZKTeco’s Lite Series is a cost-efficient 2MP motorized network camera with embedded face detection and intelligent video analytics. Ideal for smart event monitoring, it supports White/Black list alarm deployment, line crossing, intrusion detection, object left/lost detection, and counting. Built-in P2P cloud functionality allows convenient remote real-time monitoring.
Key Features
-
2MP 1/2.9” CMOS Sensor
Clear video output in various lighting conditions. -
Motorized Lens (3.35–10.05mm)
3× optical zoom, FOV 38°–101°, flexible scene coverage. -
Embedded Face Detection
Supports up to 6 faces per frame with user-defined detection areas and ≤200ms capture response. -
Intelligent Video Analytics (IVA)
Face Detection, Line Crossing, Intrusion, Object Left/Lost, Counting. -
Smart IR Illumination
2 IR LEDs with night vision up to 50 m. -
Robust & Flexible Installation
IP67 housing, PoE powered, and compact design (246 × 85 × 76 mm).
Specifications
Feature | Specification |
---|---|
Model | BL-852O38S-S5 |
Image Sensor | 1/2.9” CMOS |
Effective Pixels | 1920 × 1080 |
Lens Type | Motorized, 3.35–10.05mm, F1.7–3.0 |
FOV | 38°–101° |
Optical Zoom | 3× |
Min. Illumination | Color: 0.5Lux@F1.7–3.0, B/W: 0.001Lux@F1.7–3.0(IR ON) |
IR Distance | 50 m |
Compression | H.265 / H.264 |
Resolution | 1080P / 1.3MP / 720P |
Multi-Streaming | Main: 1080P@25fps / 960P@25fps / 720P@25fps; Sub: D1/VGA/CIF@25fps |
Motion Detection | Supported |
Privacy Mask | 4 areas |
WDR / DNR | DWDR / 2D & 3D DNR |
Day/Night | Supported |
Intelligent Video Analytics | Face Detection, Line Crossing, Intrusion, Object Left/Lost, Counting |
Max Online Users | 3 |
Network Protocols | TCP/IP, UDP, HTTP, DHCP, RTSP, NTP, RTMP |
Web Browser | IE / Firefox / Chrome / Safari |
Mobile App | AntarView Pro |
VMS | AntarVis 2.0, ZKBioSecurity IVS, ZKBio Access IVS |
Interface | 1 × RJ-45, 1 × Audio In/Out |
Power Supply | PoE (IEEE802.3af) / DC 12V±10% |
Power Consumption | <3 W |
Ingress Protection | IP67 |
Dimensions (L×W×H) | 246 × 85 × 76 mm |
Operating Temp | –30°C ~ +60°C |
Humidity | 10% ~ 90% |
Weight (Net/Gross) | 0.50 / 0.64 kg |
Why Choose BL-852O38S-S5
-
Cost-effective solution for smart monitoring
-
Embedded face detection & intelligent event analytics
-
Flexible motorized lens with 3× optical zoom
-
Night vision with 50 m IR range
-
Rugged IP67 design with PoE support
