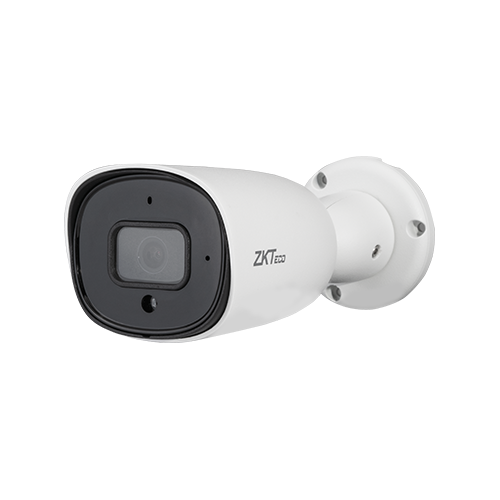

ZKTeco BL-854N38S-S7 4MP Network Camera
The BL-854N38S-S7 is a 4MP motorized network camera from ZKTeco’s Lite Series, designed for high-quality video monitoring. Featuring a 2.8–12mm motorized lens, IP67 weatherproof rating, and P2P cloud support
Key Features
-
4MP High-Resolution Video
Captures clear 2560×1440 footage for detailed monitoring. -
Motorized 2.8–12mm Lens & 37°–98° FOV
Adjustable field of view with F1.2–F2.2 aperture for precise coverage. -
Advanced Video Technology
H.265/H.264 compression, multi-streaming, motion detection, WDR, BLC/HLC support. -
P2P Cloud & Remote Access
Real-time remote viewing via AntarView Pro app. -
Durable Weatherproof Design
IP67 rating ensures reliable outdoor operation in temperatures from -30°C to 60°C. -
Low-Light Performance
Minimum illumination: Color 0.01 Lux, B/W 0.001 Lux (IR ON), with 50m IR distance.
Specifications
Feature | Specification |
---|---|
Model | BL-854N38S-S7 |
Image Sensor | 1/3” CMOS |
Effective Pixels | 2560×1440 |
Min. Illumination | Color: 0.01 Lux@F1.2-2.2, B/W: 0.001 Lux@F1.2-2.2 (IR ON) |
Flash / DDR | 128MB / 512MB |
IR LED | 2 |
IR Distance | 50m |
Lens Type | Motorized |
Mount Type | Board-in |
Focal Length | 2.8–12mm |
Aperture | F1.2–F2.2 |
FOV | 37°–98° |
Optical Zoom | Supported |
Video Compression | H.265, H.264 |
Resolution | 4MP / 3MP / 1080P / 1.3MP / 720P |
Bitrate | 1792Kbps ~ 6Mbps |
Motion Detection | Yes |
Audio Compression | G.711u |
Network Protocols | TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DDNS, RTSP, NTP, SMTP, SNMP, IPv4, SSL/TLS |
Max Online Users | 3 |
Web Browser Support | IE / Firefox / Chrome / Safari |
Management Software | AntarVis 2.0, ZKBioSecurity IVS, ZKBioAccess IVS |
Mobile APP | AntarView Pro |
Power Supply | PoE (IEEE802.3af), DC 12V±10% |
Power Consumption | <3W |
Dimensions | 246 × 85 × 76 mm |
Ingress Protection | IP67 |
Operating Temperature | -30°C ~ 60°C |
Operating Humidity | 10% ~ 90% |
Net Weight | 0.50 kg |
Gross Weight | 0.70 kg |
Why Choose BL-854N38S-S7
-
Motorized lens for adjustable field of view (37°–98°)
-
4MP resolution for clear, detailed footage
-
50m IR distance for low-light performance
-
IP67-rated for outdoor durability
-
P2P cloud support enables flexible remote monitoring
