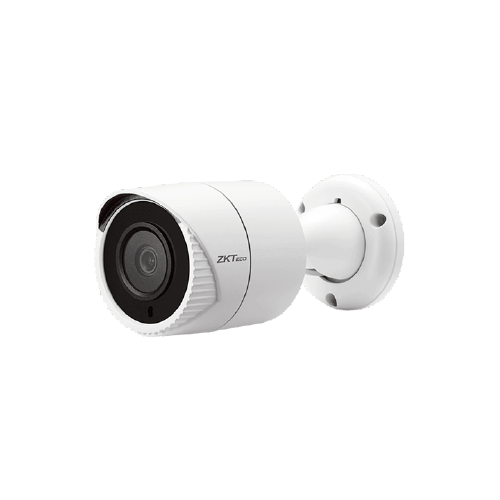

ZKTeco BS-852O23B-S5 2MP Network Camera

KSh 30,000.00

ZKTeco BS-852O23B-S5 2MP Network Camera


Model	BS-852O23B-S5
Resolution	1080P (1920×1080)
Lens	6mm Fixed Board-in
IR Distance	30 m
Connectivity	PoE, Ethernet, P2P Cloud
Protection	IP67

Category: Zkteco

Description
Reviews (0)

ZKTeco BS-852O23B-S5 2MP Network Camera

The ZKTeco BS-852O23B-S5 is a 2MP network camera with embedded face detection and advanced intelligent video analytics. It supports Full HD 1080P video, P2P cloud connectivity, and multiple smart event alarms, making it perfect for offices, commercial spaces, and high-security areas.

Key Features

Full HD 1080P Video
Crystal clear 1920×1080 resolution for detailed monitoring.
Advanced Face Detection
Detects up to 6 faces per frame with user-defined detection areas and ≤200ms capture response.
Intelligent Video Analytics
Includes Line Crossing, Intrusion, Object Left/Lost, Counting, and White/Black list event alarms.
Infrared Night Vision
2 IR LEDs provide visibility up to 30 meters in low-light environments.
Wide-Angle Fixed Lens
6mm board-in lens with F2.0 aperture and 59° field of view.
Smart Connectivity
P2P cloud support, ONVIF Profile S, TCP/IP, HTTP, RTSP, NTP, and RTMP protocols for remote access.
Weatherproof Design
IP67-rated housing suitable for harsh environments (-30°C to 60°C).

Specifications

Feature	Specification
Model	BS-852O23B-S5
Image Sensor	1/2.9” CMOS
Effective Pixels	1920 × 1080
Minimum Illumination	Color: 0.5Lux@F2.0 (AGC ON), B/W: 0.001Lux@F2.0 (IR ON)
Flash / DDR	128Mb / 512Mb
IR LED Number	2
IR Distance	30 m
Lens Type	Fixed, Board-in
Focal Length	6 mm
Aperture	F2.0
Field of View (FOV)	59°
Video Compression	H.265 / H.264
Resolution	1080P / 1.3M / 720P
Bitrate Control	CBR / VBR
Motion Detection	Supported
Digital Zoom	Supported
Privacy Mask	5 areas
WDR	DWDR
Day / Night	Supported
Noise Reduction	2D/3D DNR
Mirror / Flip	Supported
Corridor Mode	Supported
HLC / BLC	BLC Supported, HLC N/A
Intelligent Video	Face Detection, Line Crossing, Intrusion, Object Left/Lost, Counting
Max Faces per Frame	6
Detected Face Size	80×80 ~ 300×300 Pixels
Face Quality Filtering	Supported
Detection Area	User-defined
Capture Response	≤200ms
Network Protocols	TCP/IP, UDP, HTTP, DHCP, RTSP, NTP, RTMP
Interoperability	ONVIF Profile S, SDK, API
Max Online Users	3
Browser Support	IE / Firefox / Chrome / Safari
Management Software	AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS
Mobile App	AntarView Pro
Interface	1× RJ-45 Ethernet 10/100Mbps
Audio I/O	N/A
Power Supply	PoE (IEEE802.3af), DC 12V±10%
Power Consumption	<3 W
Ingress Protection	IP67
Dimensions (L×W×H)	145 × 65 × 65 mm
Working Temperature	-30°C ~ 60°C
Working Humidity	10% ~ 90%
Net Weight	0.26 kg
Gross Weight	0.37 kg
