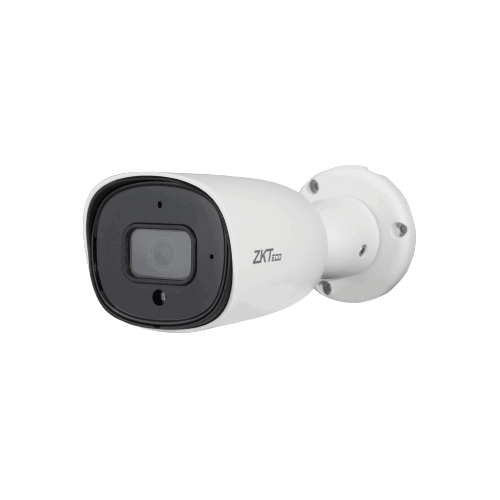

ZKTeco BS-852O23C-S5-MI 2MP Network Camera

KSh 30,000.00

ZKTeco BS-852O23C-S5-MI 2MP Network Camera


Model	BS-852O23C-S5-MI
Resolution	1080P (1920×1080)
Lens	6mm Fixed Board-in
IR Distance	30 m
Connectivity	PoE, Ethernet, P2P Cloud
Protection	IP67

Category: Zkteco

Description
Reviews (0)

ZKTeco BS-852O23C-S5-MI 2MP Network Camera

The ZKTeco BS-852O23C-S5-MI is a 2MP network camera featuring an embedded face detection algorithm for smart surveillance. It offers Full HD 1080P video, built-in P2P cloud support, and reliable night vision. Designed for precise monitoring and fast face recognition, it’s ideal for offices, smart buildings, and high-security environments.

Key Features

Full HD 1080P Video
Crisp and clear 1920×1080 resolution for detailed monitoring.
Embedded Face Detection
Detects up to 5 faces per frame with user-defined detection areas and ≤200ms capture response.
Infrared Night Vision
2 IR LEDs for effective visibility up to 30 meters in low-light conditions.
Wide-Angle Fixed Lens
6mm board-in lens with F2.0 aperture and 59° field of view for focused coverage.
Smart Connectivity
Supports P2P cloud, TCP/IP, HTTP, RTSP, DDNS, and ONVIF/GB28181 protocols for remote access.
Durable & Weatherproof
IP67-rated housing ensures operation in harsh environments from -30°C to 60°C.

Specifications

Feature	Specification
Model	BS-852O23C-S5-MI
Image Sensor	1/2.9” CMOS
Effective Pixels	1920 × 1080
Minimum Illumination	Color: 0.5Lux@F2.0 (AGC ON), B/W: 0.001Lux@F2.0 (IR ON)
Flash / DDR	128Mb / 512Mb
IR LED Number	2
IR Distance	30 m
Lens Type	Fixed, Board-in
Focal Length	6 mm
Aperture	F2.0
Field of View (FOV)	59°
Video Compression	H.265 / H.264
Resolution	1080P / 1.3M / 720P
Bitrate Control	CBR / VBR
Motion Detection	Supported
Digital Zoom	Supported
Privacy Mask	4 areas
WDR	DWDR
Day / Night	Supported
Noise Reduction	2D/3D DNR
Mirror / Flip	Supported
Corridor Mode	Supported
HLC / BLC	Supported
Intelligent Video	Face Detection
Max Faces per Frame	5
Detected Face Size	80×80 ~ 300×300 Pixels
Face Quality Filtering	Supported
Detection Area	User-defined
Capture Response	≤200ms
Network Protocols	TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP
Interoperability	ONVIF, GB28181
Max Online Users	3
Browser Support	IE / Firefox / Chrome / Safari
Management Software	AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS
Mobile App	AntarView Pro
Interface	1× RJ-45 Ethernet 10/100Mbps
Audio I/O	Built-in Mic
Power Supply	PoE, DC 12V±10%
Power Consumption	<3.7 W
Ingress Protection	IP67
Dimensions (L×W×H)	171 × 75 × 66 mm
Working Temperature	-30°C ~ 60°C
Working Humidity	0% ~ 90%
Net Weight	0.36 kg
Gross Weight	0.49 kg
