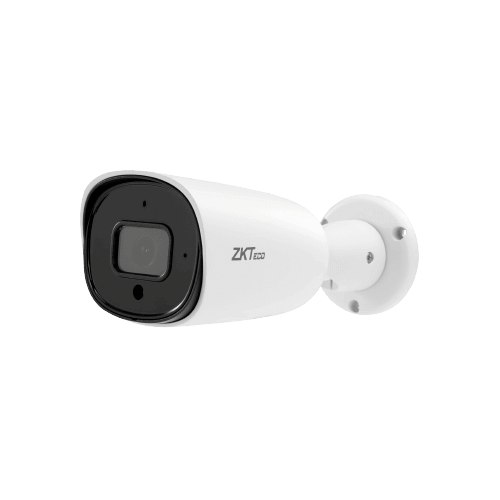

ZKTeco BS-852O23T-S5-MI 2MP Network Camera
The ZKTeco BS-852O23T-S5-MI is a high-performance 2MP network camera designed for clear and reliable surveillance. Featuring a 1/2.9” CMOS sensor, Full HD 1080P video, and built-in P2P cloud support, it allows flexible remote monitoring. With a 6mm wide-angle lens and durable IP67 design, it’s perfect for both indoor and outdoor smart surveillance applications.
Key Features
Full HD 1080P Video
Sharp video resolution at 1920×1080 for detailed monitoring.1/2.9” CMOS Sensor
Provides excellent color and night vision performance with minimal illumination requirements.Infrared Night Vision
Equipped with 4 IR LEDs to support night visibility up to 30 meters.Wide-Angle Fixed Lens
6mm board-in lens with F2.0 aperture and 59° field of view for targeted coverage.Smart Connectivity
Supports P2P cloud, TCP/IP, HTTP, RTSP, DDNS, and ONVIF for seamless remote access.Durable & Weatherproof
IP67-rated housing ensures reliable operation in temperatures from -30°C to 60°C.
Specifications
| Feature | Specification |
|---|---|
| Model | BS-852O23T-S5-MI |
| Image Sensor | 1/2.9” CMOS |
| Effective Pixels | 1920 × 1080 |
| Minimum Illumination | Color: 0.5Lux@F2.0 (AGC ON), B/W: 0.001Lux@F2.0 (IR ON) |
| Flash / DDR | 16Mb / 512Mb |
| IR LED Number | 4 |
| IR Distance | 30 m |
| Lens Type | Fixed, Board-in |
| Focal Length | 6 mm |
| Aperture | F2.0 |
| Field of View (FOV) | 59° |
| Video Compression | H.265 / H.264 |
| Resolution | 1080P / 1.3M / 720P |
| Bitrate Control | CBR / VBR |
| Motion Detection | Supported |
| Digital Zoom | Supported |
| Privacy Mask | 4 areas |
| WDR | DWDR |
| Day / Night | Supported |
| Noise Reduction | 2D/3D DNR |
| Mirror / Flip | Supported |
| Corridor Mode | Supported |
| HLC / BLC | Supported |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP |
| Interoperability | ONVIF, SDK, API |
| Max Online Users | 3 |
| Browser Support | IE / Firefox / Chrome / Safari |
| Management Software | AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS |
| Mobile App | AntarView Pro |
| Interface | 1× RJ-45 Ethernet 10/100Mbps |
| Audio I/O | Built-in Mic |
| Micro-SD Slot | Up to 256GB |
| Power Supply | PoE, DC 12V±10% |
| Power Consumption | <3.7 W |
| Ingress Protection | IP67 |
| Dimensions (L×W×H) | 180.8 × 75.3 × 66.2 mm |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 0% ~ 90% |
| Net Weight | 0.40 kg |
| Gross Weight | 0.52 kg |
Why Choose ZKTeco BS-852O23T-S5-MI
Full HD video with reliable night vision
59° field of view for focused surveillance
P2P cloud support for easy remote access
Weatherproof IP67 design for indoor/outdoor use
Compatible with ZKTeco software and mobile app
