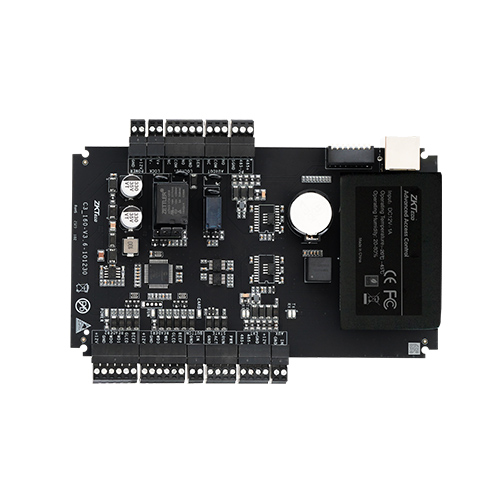

ZKTeco C3-100 Plus Access Control Panel
The ZKTeco C3-100 Plus is an IP-based access controller designed for small-to-medium enterprises. It supports RFID cards, passwords, and QR codes, and can manage up to 100,000 users and 500,000 transactions, ensuring secure, scalable, and flexible access control for a single access point.
Key Features
Multi-Authentication Support
Card, password, and dynamic QR code authentication for secure access.Single Access Point Control
Ideal for managing one door efficiently.High Security
AES 128/256-bit encryption protects communications between controller, readers, and I/O boards.Flexible Connectivity
TCP/IP, RS-485, Wiegand, and USB for smooth integration with various devices.Smart Access Control Features
Webserver, multiple verification methods, access levels, groups, holidays, anti-passback, anti-tailgating, and linkage.
Specifications
| Feature | Specification |
|---|---|
| Operating System | Linux OS |
| CPU / RAM / ROM | Single Core 1.0GHz / 128MB RAM / 256MB ROM |
| Authentication Method | Card / Password / QR Code |
| Access Point Capacity | 1 |
| Reader Capacity | 2 RS-485 Readers, 2 Wiegand 26/34/66-bit Readers |
| IO Expansion | Supports up to 8 EX0808 boards |
| User Capacity | 100,000 |
| Card Capacity | 100,000 (1:N, Standard) |
| QR Code Capacity | 100,000 (Static/Dynamic) |
| Inputs / Outputs | 1 Exit Button, 1 Door Status, 1 AUX Input / 1 Lock Relay, 1 Alarm (expandable with EX0808) |
| Max. Card Length | Up to 66 bits |
| Communication | TCP/IP, RS-485, Wiegand, USB Type-A, Aux Inputs/Outputs, Electric Lock, Door Sensor, Exit Button, Alarm |
| Power Supply | 9.6V – 14.4V DC |
| Operating Temp | 0°C – 45°C |
| Operating Humidity | 20% – 80% RH (Non-condensing) |
| Dimensions (mm) | 175 × 99 × 19.3 |
| Weight | Net: 0.158 kg / Gross: 0.263 kg |
| Supported Software | ZKBio CVAccess |
| Optional Installation | Wall-mount with metal enclosure; backup battery space reserved |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
Why Choose ZKTeco C3-100 Plus
Single access point for small offices or entrances
Multi-authentication: card, password, QR code
AES encryption for secure communication
Flexible TCP/IP, RS-485, Wiegand, USB connectivity
Smart features: anti-passback, anti-tailgating, access levels, holidays
