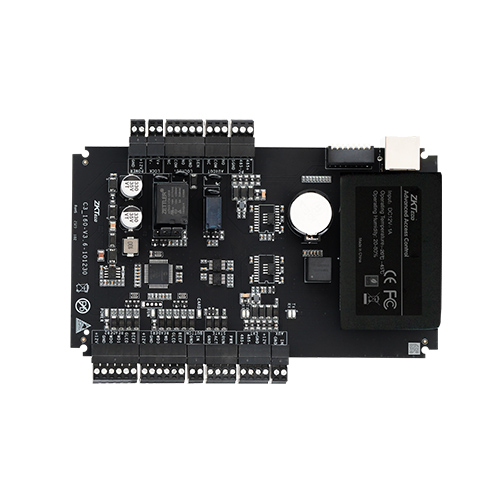

ZKTeco C3-200 Plus Access Control Panel
KSh 28,000.00
ZKTeco C3-200 Plus Access Control Panel
| Authentication | Card / Password / QR Code |
| User Capacity | 100,000 |
| Transaction Capacity | 500,000 |
| Communication | TCP/IP, RS-485, Wiegand, USB |
| Dimensions | 175 × 99 × 19.3 mm |
ZKTeco C3-200 Plus Access Control Panel
The ZKTeco C3-200 Plus is an IP-based access controller designed for small-to-medium enterprises with two access points. It supports RFID cards, passwords, and QR codes, and can manage up to 100,000 users and 500,000 transactions, providing secure, scalable, and versatile access control.
Key Features
-
Multi-Authentication Support
Card, password, and dynamic QR code authentication for secure access. -
Dual Access Point Control
Perfect for managing two doors or entrances simultaneously. -
Advanced Security
AES 128/256-bit encryption ensures safe communication between controller, readers, and I/O boards. -
Flexible Connectivity
TCP/IP, RS-485, Wiegand, and USB for smooth integration with various devices. -
Smart Access Control Features
Webserver, multiple verification methods, access levels, groups, holidays, anti-passback, anti-tailgating, and linkage.
Specifications
| Feature | Specification |
|---|---|
| Operating System | Linux OS |
| CPU / RAM / ROM | Single Core 1.0GHz / 128MB RAM / 256MB ROM |
| Authentication Method | Card / Password / QR Code |
| Access Point Capacity | 2 |
| Reader Capacity | 4 RS-485 Readers, 4 Wiegand 26/34/66-bit Readers |
| IO Expansion | Supports up to 8 EX0808 boards |
| User Capacity | 100,000 |
| Card Capacity | 100,000 (1:N, Standard) |
| QR Code Capacity | 100,000 (Static/Dynamic) |
| Inputs / Outputs | 2 Exit Buttons, 2 Door Status, 2 AUX Inputs / 2 Lock Relays, 2 Alarms (expandable with EX0808) |
| Max. Card Length | Up to 66 bits |
| Communication | TCP/IP, RS-485, Wiegand, USB Type-A, Aux Inputs/Outputs, Electric Lock, Door Sensor, Exit Button, Alarm |
| Power Supply | 9.6V – 14.4V DC |
| Operating Temp | 0°C – 45°C |
| Operating Humidity | 20% – 80% RH (Non-condensing) |
| Dimensions (mm) | 175 × 99 × 19.3 |
| Weight | Net: 0.190 kg / Gross: 0.296 kg |
| Supported Software | ZKBio CVAccess |
| Optional Installation | Wall-mount with metal enclosure; backup battery space reserved |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
Why Choose ZKTeco C3-200 Plus
-
Dual access points for medium-sized offices
-
Multi-authentication: card, password, QR code
-
AES encryption for secure communication
-
Flexible TCP/IP, RS-485, Wiegand, USB connectivity
-
Smart features: anti-passback, anti-tailgating, access levels, holidays
