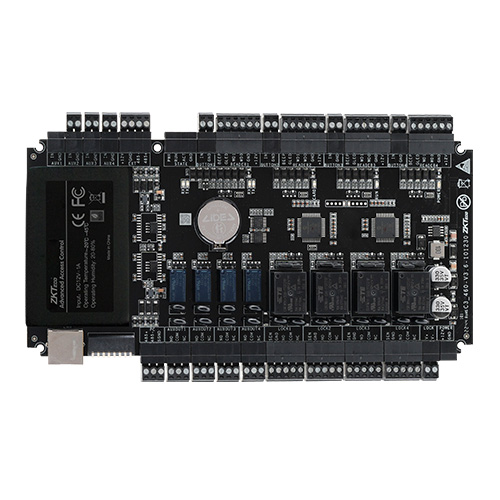

ZKTeco C3-400 Plus Access Control Panel
KSh 28,000.00
ZKTeco C3-400 Plus Access Control Panel
| Authentication | Card / Password / QR Code |
| User Capacity | 100,000 |
| Transaction Capacity | 500,000 |
| Communication | TCP/IP, RS-485, Wiegand, USB |
| Dimensions | 215.88 × 99.14 × 19.3 mm |
ZKTeco C3-400 Plus Access Control Panel
The ZKTeco C3-400 Plus is an IP-based access controller designed for medium-sized enterprises with up to four access points. It supports RFID cards, passwords, and QR codes, and can manage up to 100,000 users and 500,000 transactions, providing secure, scalable, and highly versatile access control.
Key Features
-
Multi-Authentication Support
Card, password, and dynamic QR code authentication for secure access. -
Four Access Point Control
Ideal for managing multiple doors or entrances simultaneously. -
Advanced Security
AES 128/256-bit encryption ensures safe communication between controller, readers, and I/O boards. -
Flexible Connectivity
TCP/IP, RS-485, Wiegand, and USB for smooth integration with various devices. -
Smart Access Control Features
Webserver, multiple verification methods, access levels, groups, holidays, anti-passback, anti-tailgating, and linkage.
Specifications
| Feature | Specification |
|---|---|
| Operating System | Linux OS |
| CPU / RAM / ROM | Single Core 1.0GHz / 128MB RAM / 256MB ROM |
| Authentication Method | Card / Password / QR Code |
| Access Point Capacity | 4 |
| Reader Capacity | 8 RS-485 Readers, 4 Wiegand 26/34/66-bit Readers |
| IO Expansion | Supports up to 8 EX0808 boards |
| User Capacity | 100,000 |
| Card Capacity | 100,000 (1:N, Standard) |
| QR Code Capacity | 100,000 (Static/Dynamic) |
| Inputs / Outputs | 4 Exit Buttons, 4 Door Status, 4 AUX Inputs / 4 Lock Relays, 4 Alarms (expandable with EX0808) |
| Max. Card Length | Up to 66 bits |
| Communication | TCP/IP, RS-485, Wiegand, USB Type-A, Aux Inputs/Outputs, Electric Lock, Door Sensor, Exit Button, Alarm |
| Power Supply | 9.6V – 14.4V DC |
| Operating Temp | 0°C – 45°C |
| Operating Humidity | 20% – 80% RH (Non-condensing) |
| Dimensions (mm) | 215.88 × 99.14 × 19.3 |
| Weight | Net: 0.252 kg / Gross: 0.357 kg |
| Supported Software | ZKBio CVAccess |
Why Choose ZKTeco C3-400 Plus
-
Four access points for medium-sized enterprises
-
Multi-authentication: card, password, QR code
-
AES encryption for secure communication
-
Flexible TCP/IP, RS-485, Wiegand, USB connectivity
-
Smart features: anti-passback, anti-tailgating, access levels, holidays
