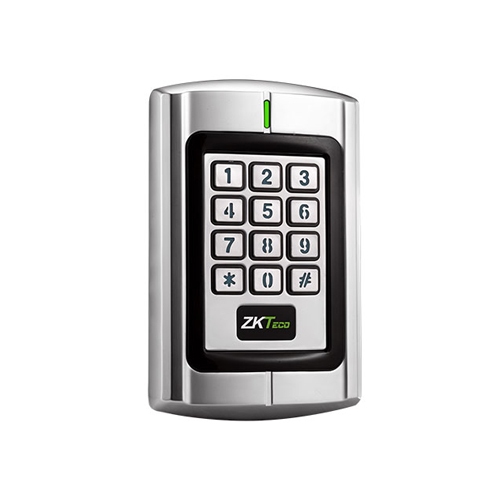

ZKTeco DF-H1-E Access Control Terminal
The ZKTeco DF-H1-E is a compact RFID access control terminal supporting card, PIN, or combined card/PIN verification. With IP65 ingress protection and optional MIFARE card support, it is ideal for indoor or outdoor access control applications.
Key Features
Multi-Verification Modes
Supports Card, PIN, Card/PIN, or Card + PIN combinations for flexible access control.Compact and Durable Design
IP65-rated protection ensures reliable operation in various environments.Built-In Card Reader
Supports 125 kHz EM cards by default, with optional 13.56 MHz MIFARE compatibility.User-Friendly Keypad & LED
White backlit numeric keypad and green/red LED indicators for clear operation.Access Control Integration
Connects to electric locks, door sensors, alarms, exit buttons, and doorbells with Wiegand out and auxiliary input support.
Specifications
| Feature | Specification |
|---|---|
| Verification Type | Card, PW, Card/PW, Card + PW |
| Built-in Card Reader | 125 kHz EM (optional 13.56 MHz MIFARE) |
| Card Capacity | 1,000 |
| Password Capacity | 1,000 |
| Communication | N/A |
| Access Control Interface | Electric lock, door sensor, alarm, exit button, doorbell (optional) |
| Wiegand Interface | Wiegand out |
| Auxiliary Interface | 1 auxiliary input for linkage functions |
| LED Indicator | Green, Red |
| Keypad | White backlit numeric (0–9), function keys (*, #), optional bell key |
| Power | 12V DC |
| Operating Temperature | -20°C ~ 50°C |
| Operating Humidity | ≤95% |
| Dimensions (WxHxD) | DF-V1: 135.8 × 55.7 × 22.2 mm, DF-H1: 126.8 × 79.8 × 27.0 mm |
| Ingress Protection Rate | IP65 |
Why Choose ZKTeco DF-H1-E
Compact and durable design suitable for indoor/outdoor use
Multi-verification modes for flexible security
Optional 13.56 MHz MIFARE card support
Easy integration with locks, sensors, alarms, and exit buttons
Clear LED indicators and backlit keypad for user convenience
