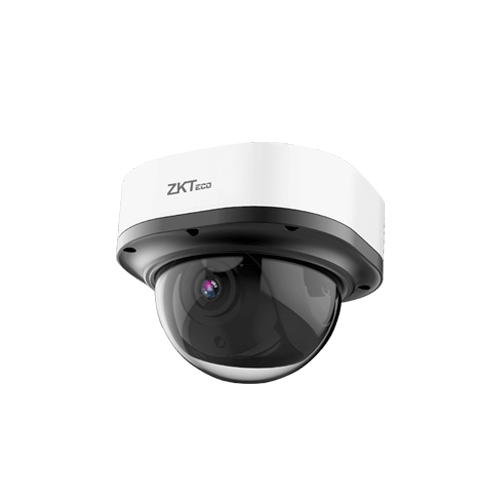

ZKTeco DL-852Q28B-LP 2MP Motorized LPR Camera
The ZKTeco DL-852Q28B-LP is a high-performance 2MP license plate recognition (LPR) camera with an embedded motorized lens. Ideal for access control, tolling, and vehicle management, it supports plates from over 80 countries, delivering fast, efficient recognition with minimal setup.
Key Features
2MP 1/2.8” Sony STARVIS CMOS Sensor
Clear, high-resolution images day and night.Motorized Lens (3.35–10.05mm)
3× optical zoom with flexible field-of-view from 38°–107°.License Plate Recognition (LPR)
Embedded algorithm for automatic detection without external computers.Smart IR Illumination
Up to 50 m night visibility with low-light performance.Dual-Stream H.265+/H.265/H.264
Efficient compression saves bandwidth and storage.Rugged IP67 Housing & PoE Support
Durable design for outdoor deployment with simple PoE installation.
Specifications
Feature | Specification |
---|---|
Model | DL-852Q28B-LP |
Image Sensor | 1/2.8” Sony STARVIS CMOS |
Effective Pixels | 1920 × 1080 |
Min. Illumination | Color: 0.001 Lux @ F1.7 (AGC ON) |
Lens | Motorized, 3.35–10.05mm, F1.7–3.0 |
IR LEDs / Range | 2 LEDs / 50 m |
Compression | H.265+, H.265, H.264 |
Resolution | 1080P / 1.3MP / 720P / Q720P / CIF |
Frame Rate | 25 fps (Main: 1080P, Sub: Q720P) |
Motion Detection | Supported |
WDR / DNR | TWDR / 3D DNR |
Day/Night | Supported |
Privacy Mask | 5 areas |
ROI | 4 areas |
HLC / BLC / Defog | HLC Supported, BLC N/A, Defog Supported |
Analytics (IVA) | Face Recognition, Line Crossing, Intrusion, Object Left/Lost, Counting, Video Shelter, Scene Change, Audio Detection, Fire Detection, VQD |
Network Protocols | TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP |
Interoperability | ONVIF, SDK, API |
Max Online Users | 5 |
Web Browsers | IE, Firefox, Chrome, Safari |
Mobile App | AntarView Pro |
VMS | AntarVis 2.0 |
Interface | 1 × RJ-45, 1 × Audio In/Out, 2 × Alarm In /1 × Alarm Out, RS485 |
Storage | 64GB Micro-SD included, ANR |
Power Supply | PoE (IEEE802.3af) / 12V DC ±10% |
Power Consumption | <3 W |
Ingress Protection | IP67 |
Dimensions | 247 × 85 × 76 mm |
Weight (Net/Gross) | 0.50 / 0.64 kg |
Operating Temp | –30°C ~ +60°C |
Humidity | 10% ~ 90% |
Why Choose ZKTeco DL-852Q28B-LP
Embedded LPR engine for fast vehicle recognition
Motorized lens with 3× optical zoom and adjustable FOV
Smart IR for 50 m night visibility
Dual-stream compression for bandwidth and storage efficiency
Rugged IP67 build with PoE for easy installation
