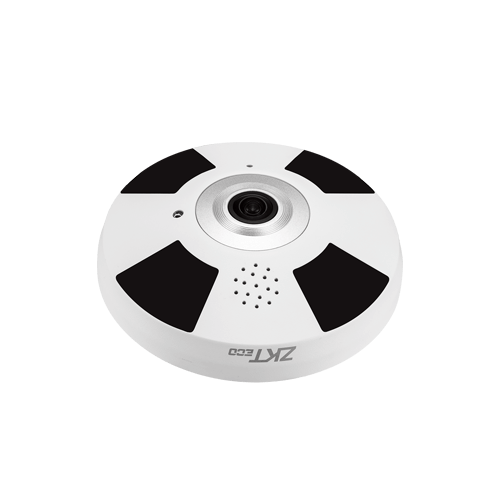

ZKTeco DL-858V17C-FS 8MP Fisheye Network Camera
KSh 6,000.00
ZKTeco DL-858V17C-FS 8MP Fisheye Network Camera
| Sensor | 8MP 1/1.7” Sony CMOS |
| Lens | 360° Fisheye |
| Resolution | 3840 × 2160 (4K) |
| IR Range | 10–20 m |
| Housing | IP66 |
| Power | PoE / 12 V DC |
ZKTeco DL-858V17C-FS 8MP Fisheye Network Camera
The ZKTeco DL-858V17C-FS is a compact 8MP fisheye IP camera offering full 360° coverage in Ultra HD. With dewarp support, smart IR up to 20 m, and a rugged IP66 casing, it’s perfect for wide-area surveillance in offices, retail, and public spaces.
Key Features
8MP 1/1.7” Sony CMOS Sensor
Captures sharp 4K images with vivid colors and low noise.360° Fisheye Lens with Dewarp
Provides panoramic monitoring with optional correction modes.IR Illumination 10–20 m
Ensures clear visibility even in total darkness.Dual-Stream H.265/H.264
Efficient compression saves up to 70% bandwidth and storage.Micro-SD Slot & P2P Cloud
Local storage (128 GB max) plus secure remote viewing via AntarView Pro.Durable IP66 Housing with PoE
Weatherproof casing and simple Power-over-Ethernet installation.
Specifications
| Feature | Specification |
|---|---|
| Model | DL-858V17C-FS |
| Image Sensor | 1/1.7” 8MP Sony CMOS |
| Effective Pixels | 3840 × 2160 |
| Min. Illumination | Color: 0.1 Lux @F1.4 (AGC ON); B/W: 0 Lux (IR ON) |
| Lens | 360° Fisheye, F1.4 |
| IR LEDs / Range | 4 LEDs / 10–20 m |
| Compression | H.265 / H.264 |
| Max Resolution | 8MP (3840×2160) |
| Frame Rate | 30 fps @4K / 5M / 4M / 3M / 2M |
| Streams | Main: 4K,5M,4M,3M,2M; Sub: 720p/D1/CIF |
| Motion Detection | Supported |
| WDR / DNR | TWDR / 2D & 3D DNR |
| Day/Night | Auto (ICR) |
| Privacy Mask | 5 areas |
| ROI | 4 areas |
| Defog / HLC / BLC | Supported |
| Analytics (IVA) | N/A |
| Network Protocols | TCP/IP, UDP, HTTP, RTSP, FTP, NTP, PPPoE, SMTP, ONVIF S |
| Max Online Users | 5 |
| Web Browsers | IE, Firefox, Chrome, Safari* |
| Mobile App | AntarView Pro |
| VMS | AntarVis 2.0 / ZKBioSecurity IVS / ZKBio Access IVS |
| Interface | 1 × RJ-45 (10/100 Mbps), 1×Audio In/Out, 1×Alarm In/Out, RS485 |
| Storage | Micro-SD up to 128 GB, ANR |
| Power Supply | PoE (IEEE802.3af) / 12 V DC ±10% |
| Power Consumption | <5 W |
| Ingress Protection | IP66 |
| Dimensions | Ø149.4 × 50 mm |
| Weight (Net/Gross) | 2.0 kg |
| Operating Temp | –10 °C ~ 50 °C |
| Humidity | 10% ~ 90% |
Why Choose ZKTeco DL-858V17C-FS
Ultra HD 4K with full 360° fisheye coverage
Dewarp for flexible viewing modes
Smart IR for clear night scenes up to 20 m
Micro-SD and P2P cloud storage options
Sturdy IP66 build with PoE for easy setup
