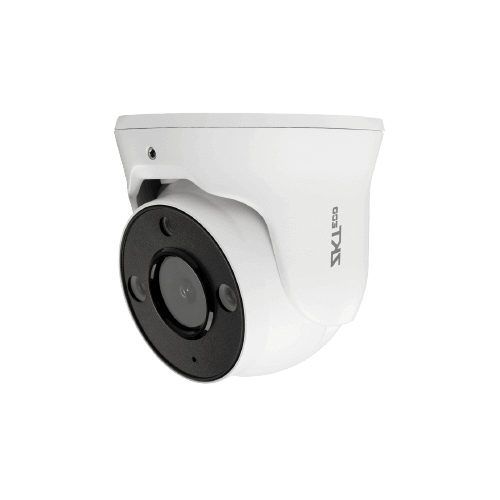

ZKTeco ES-852O21T-S5-MI 2MP Network Camera
The ZKTeco ES-852O21T-S5-MI is a cost-efficient 2MP network camera ideal for home, office, and smart surveillance. Featuring a 1/2.9” CMOS sensor, Full HD 1080P video, and built-in P2P cloud support, it provides clear video monitoring and convenient remote access. Designed for flexibility, durability, and reliable PoE connectivity.
Key Features
-
Full HD 1080P Video
Crystal-clear video recording with resolutions up to 1920×1080 for detailed monitoring. -
1/2.9” CMOS Image Sensor
Captures high-quality color video at 0.5 Lux and night vision as low as 0.001 Lux with IR. -
Infrared Night Vision
2 IR LEDs support up to 30 meters for low-light and nighttime surveillance. -
Wide-Angle Fixed Lens
2.8mm board-in lens with F2.0 aperture and 105° field of view for broad coverage. -
Smart Connectivity
Supports P2P cloud, TCP/IP, HTTP, RTSP, DDNS, and ONVIF for seamless integration. -
Durable & Weatherproof
IP67-rated housing ensures operation in harsh environments from -30°C to 60°C.
Specifications
Feature | Specification |
---|---|
Model | ES-852O21T-S5-MI |
Image Sensor | 1/2.9” CMOS |
Effective Pixels | 1920 × 1080 |
Minimum Illumination | Color: 0.5Lux@F2.0 (AGC ON), B/W: 0.001Lux@F2.0 (IR ON) |
Flash / DDR | 16Mb / 512Mb |
IR LED Number | 2 |
IR Distance | 30 m |
Lens Type | Fixed, Board-in |
Focal Length | 2.8 mm |
Aperture | F2.0 |
Field of View (FOV) | 105° |
Video Compression | H.265 / H.264 |
Resolution | 1080P / 1.3M / 720P |
Bitrate Control | CBR / VBR |
Motion Detection | Supported |
Digital Zoom | Supported |
Privacy Mask | 4 areas |
WDR | DWDR |
Day / Night | Supported |
Noise Reduction | 2D/3D DNR |
Mirror / Flip | Supported |
Corridor Mode | Supported |
HLC / BLC | Supported |
Network Protocols | TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP |
Interoperability | ONVIF, SDK, API |
Max Online Users | 3 |
Browser Support | IE / Firefox / Chrome / Safari |
Management Software | AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS |
Mobile App | AntarView Pro |
Interface | 1× RJ-45 Ethernet 10/100Mbps |
Audio I/O | Built-in Mic |
Micro-SD Slot | Up to 256GB |
Power Supply | PoE, DC 12V±10% |
Power Consumption | <3.7 W |
Ingress Protection | IP67 |
Dimensions (L×W×H) | Φ97 × 88.5 mm |
Working Temperature | -30°C ~ 60°C |
Working Humidity | 10% ~ 90% |
Net Weight | 0.42 kg |
Gross Weight | 0.6 kg |
Why Choose ZKTeco ES-852O21T-S5-MI
-
Clear Full HD video and effective night vision up to 30m
-
Wide-angle 105° field of view covers larger areas
-
Built-in P2P cloud support allows easy remote monitoring
-
Durable IP67 design for outdoor and harsh environments
-
Compatible with ZKTeco software and mobile app for versatile management
