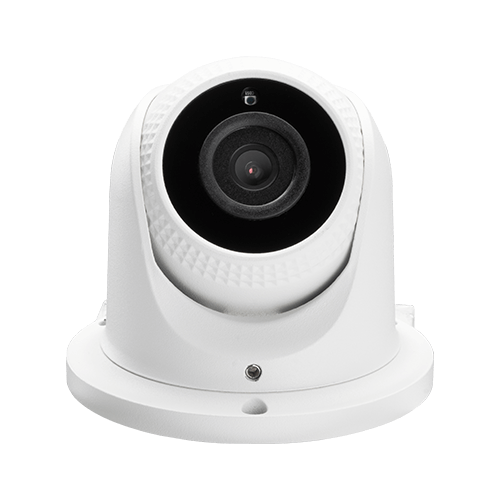

ZKTeco ES-854N22C-S7 4MP Lite Series Fixed Eyeball Camera
KSh 20,000.00
ZKTeco ES-854N22C-S7 4MP Lite Series Fixed Eyeball Camera
| Sensor | 4MP 1/3” CMOS |
| Lens | Fixed 3.6mm |
| IR Range | 30 m |
| Resolution | 4MP / 3MP / 1080P / 1.3MP / 720P |
| Housing | IP67 |
| Power | PoE / 12V DC |
ZKTeco ES-854N22C-S7 4MP Lite Series Fixed Eyeball Camera
The ES-854N22C-S7 is a 4MP fixed-lens camera from ZKTeco’s Lite Series, offering high-quality, cost-efficient video monitoring for various scenarios. It comes with built-in P2P cloud functionality, allowing flexible and convenient remote real-time access from anywhere.
Key Features
4MP 1/3” CMOS Sensor
Provides detailed, high-resolution video for clear monitoring.Fixed Lens (3.6mm)
Offers a 93° wide-angle field of view for broad coverage.IR Night Vision
Two IR LEDs provide up to 30 m visibility in low light conditions.Video Compression & Multi-Streaming
Supports H.265/H.264; main stream up to 4MP@20fps.Advanced Imaging Functions
DWDR, 2D/3D noise reduction, mirror/flip, corridor mode, HLC, BLC, digital zoom, privacy mask.Compact, Durable Design
IP67-rated housing with PoE support for easy installation in multiple environments.
Specifications
| Feature | Specification |
|---|---|
| Model | ES-854N22C-S7 |
| Image Sensor | 1/3” CMOS |
| Effective Pixels | 2560 × 1440 |
| Lens Type | Fixed, 3.6mm, F1.6 |
| FOV | 93° |
| Optical Zoom | N/A |
| Min. Illumination | Color: 0.01Lux@F1.6, B/W: 0.001Lux@F1.6(IR ON) |
| IR Distance | 30 m |
| Compression | H.265 / H.264 |
| Resolution | 4MP / 3MP / 1080P / 1.3MP / 720P |
| Multi-Streaming | Main: 4MP@20fps, Sub: D1@25fps, Third: N/A |
| Motion Detection | Supported |
| Privacy Mask | 4 areas |
| WDR / DNR | DWDR / 2D & 3D DNR |
| Day/Night | Supported |
| Max Online Users | 3 |
| Network Protocols | TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IPv4, SSL/TLS |
| Interoperability | ONVIF Profile S, SDK, API |
| Web Browser | IE / Firefox / Chrome / Safari |
| Mobile App | AntarView Pro |
| VMS | AntarVis 2.0, ZKBioSecurity IVS, ZKBioAccess IVS |
| Interface | 1 × RJ-45 (10/100Mbps) |
| Audio I/O | N/A |
| Power Supply | PoE (IEEE802.3af) / DC 12V±10% |
| Power Consumption | <3 W |
| Ingress Protection | IP67 |
| Dimensions (L×W×H) | Φ107 × 107 mm |
| Operating Temp | –30°C ~ +60°C |
| Humidity | 10% ~ 90% |
| Net/Gross Weight | 0.38 / 0.50 kg |
Why Choose ES-854N22C-S7
Affordable 4MP high-resolution monitoring
Wide 93° fixed field of view
Durable IP67-rated housing with PoE
Built-in P2P cloud for easy remote access
