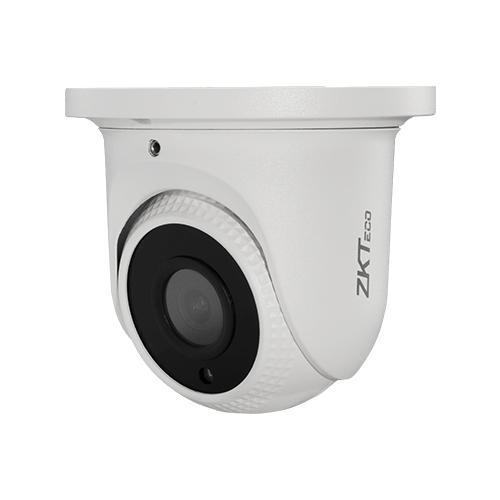

ZKTeco ES-854N22C-S7-MI 4MP Lite Fixed Eyeball Camera

KSh 20,000.00

ZKTeco ES-854N22C-S7-MI 4MP Lite Fixed Eyeball Camera


Sensor	4MP 1/3” CMOS
Lens	Fixed 3.6mm
IR Range	30 m
Resolution	4MP / 3MP / 1080P / 1.3MP / 720P
Housing	IP67
Power	PoE / 12V DC

Category: Zkteco

Description
Reviews (0)

ZKTeco ES-854N22C-S7-MI 4MP Lite Fixed Eyeball Camera

The ES-854N22C-S7-MI is a 4MP fixed-lens eyeball camera from ZKTeco’s Lite Series, offering high-quality video monitoring at an affordable price. Equipped with built-in P2P cloud functionality, it provides easy remote real-time viewing for various settings, making it ideal for cost-efficient, reliable surveillance.

Key Features

4MP 1/3” CMOS Sensor
Delivers crisp, high-resolution video for detailed monitoring.
Fixed Lens (3.6mm)
Provides a wide 93° field of view for comprehensive coverage.
IR Night Vision
2 IR LEDs offer visibility up to 30 m in low-light conditions.
Video Compression & Multi-Streaming
Supports H.265/H.264; main stream up to 4MP@20fps.
Advanced Imaging Features
DWDR, 2D/3D noise reduction, mirror/flip, corridor mode, HLC, BLC, digital zoom, privacy mask.
Compact & Durable Design
IP67-rated housing with PoE support for flexible installation.

Specifications

Feature	Specification
Model	ES-854N22C-S7-MI
Image Sensor	1/3” CMOS
Effective Pixels	2560 × 1440
Lens Type	Fixed, 3.6mm, F1.6
FOV	93°
Optical Zoom	N/A
Min. Illumination	Color: 0.01Lux@F1.6, B/W: 0.001Lux@F1.6(IR ON)
IR Distance	30 m
Compression	H.265 / H.264
Resolution	4MP / 3MP / 1080P / 1.3MP / 720P
Multi-Streaming	Main: 4MP@20fps, Sub: D1@25fps, Third: N/A
Motion Detection	Supported
Privacy Mask	4 areas
WDR / DNR	DWDR / 2D & 3D DNR
Day/Night	Supported
Max Online Users	3
Network Protocols	TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IPv4, SSL/TLS
Interoperability	ONVIF Profile S, SDK, API
Web Browser	IE / Firefox / Chrome / Safari
Mobile App	AntarView Pro
VMS	AntarVis 2.0, ZKBioSecurity IVS, ZKBioAccess IVS
Interface	1 × RJ-45 (10/100Mbps), Built-in Microphone
Power Supply	PoE (IEEE802.3af) / DC 12V±10%
Power Consumption	<3 W
Ingress Protection	IP67
Dimensions (L×W×H)	Φ107 × 107 mm
Operating Temp	–30°C ~ +60°C
Humidity	10% ~ 90%
Net/Gross Weight	0.38 / 0.50 kg
