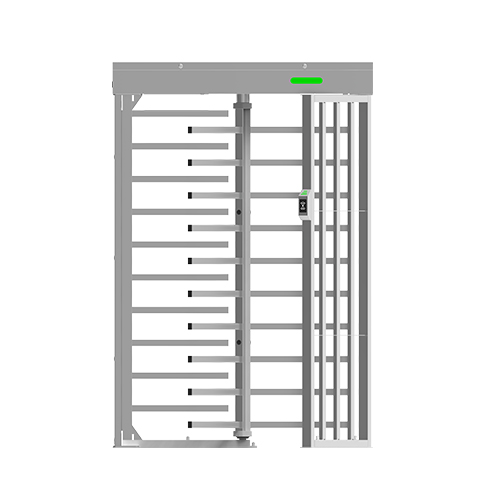

ZKTeco FHT3300 Full Height Turnstile
KSh 90,000.00
ZKTeco FHT3300 Full Height Turnstile
| Lane Width | 550mm |
| Rotor Type | 3-blade, full-height |
| Material | SUS304 stainless steel |
| Authentication | RFID, Fingerprint, QR |
| Dimensions | 1470×1382.5×2182 mm |
ZKTeco FHT3300 Full Height Turnstile
The ZKTeco FHT3300 is a single-lane, full-height turnstile designed for high-security access control in both indoor and outdoor environments. Built from durable SUS304 stainless steel, it supports multiple authentication methods including RFID, fingerprint, and QR code, ensuring reliable and secure entry management.
Key Features
3-Blade Rotor Design
Full-height rotating system with anti-tailgating security.Multi-Authentication Support
Compatible with RFID, fingerprint readers, and QR code scanners.Durable Stainless Steel Build
Constructed with SUS304 stainless steel for long-term reliability.High Throughput Capacity
Supports up to 20–30 users per minute depending on authentication type.Emergency Safety Mode
Rotor unlocks automatically in emergencies for safe evacuation.
Specifications
| Feature | Specification |
|---|---|
| Lane Type | Single lane |
| Lane Width | 550mm (21.65″) |
| Lane Height | 2002mm (78.82″) |
| Rotor Configuration | 3-blade, 10 arms |
| Material | SUS304 stainless steel (SUS316 optional) |
| Authentication Options | RFID, Fingerprint (FR1500S/3rd-party), QR code reader |
| Throughput Rate | RFID: 20/min, Fingerprint: 15/min, QR code: 30/min |
| Indicators | LED visual indicators (green arrow/red cross) |
| Power Supply | AC110–220V, 50/60 Hz |
| Power Rating | 40W |
| Operating Temp. | -28°C to 60°C |
| Humidity | 0%–95% RH (non-condensing) |
| Noise Level | <60 dB |
| MCBF | 1 million cycles |
| Dimensions (L×W×H) | 1470 × 1382.5 × 2182 mm |
| Weight | Net: 260kg, Gross: 300kg |
| Ingress Protection | IPX4 |
| Software | ZKBio CVSecurity (depends on controller) |
| Safety Features | Emergency escape function, Anti-tailgating |
Why Choose ZKTeco FHT3300
Strong 3-blade full-height rotor for high security
Supports RFID, fingerprint, and QR code authentication
Designed for indoor and outdoor environments
Long lifespan with stainless steel construction
Automatic rotor unlock during emergencies
