ZKTeco KR500 Series RFID Reader

Original price was: KSh 30,000.00.Current price is: KSh 25,000.00.

ZKTeco KR500 Series RFID Reader


Model	ZKTeco KR500 Series
Card Type	125 kHz EM / 13.56 MHz IC
Read Range	5–10 cm depending on model
Output Format	Wiegand 26-bit / 34-bit
Operating Temp	-20°C to 65°C
Protection	IP64 / IP65
Power Supply	DC 6–14V

Category: Zkteco

Description
Reviews (0)

ZKTeco KR500 Series RFID Reader

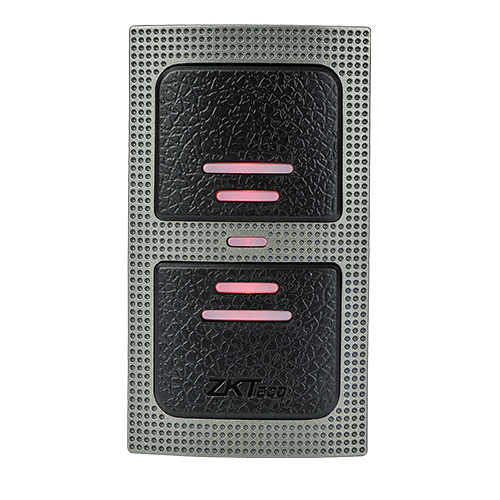

The ZKTeco KR500 Series is a Wiegand card reader supporting 125 kHz EM or 13.56 MHz IC cards. Designed for indoor and outdoor access control applications, the KR500 Series features fast reading speed, robust build quality, and IP65-rated protection on most models, ensuring reliable operation in various environments.

Key Features

High Compatibility
Supports both EM 125 kHz and IC 13.56 MHz cards.
Fast and Accurate
Reading time ≤ 200ms ensures quick access and minimal waiting.
Durable Outdoor Design
IP65-rated models for water and dust resistance (KR500-E/M, KR501-E/M, KR503-E/M).
Flexible Output Options
Default output formats: 26-bit Wiegand for KRxxx-E and 34-bit Wiegand for KRxxx-M.
User Feedback
Red and green LED indicators plus audible beeper.
Wide Operating Range
Works reliably in temperatures from -20°C to 65°C and 10–90% relative humidity (non-condensing).

Specifications

Feature	KR500 Series Specification
Read Range	KRxxx-E: up to 10 cm KRxxx-M: up to 5 cm
Reading Time	≤ 200 ms
Input Port	External LED Control, External Buzzer Control
Output Format	KRxxx-E: 26-bit Wiegand (Default) KRxxx-M: 34-bit Wiegand (Default)
Power Supply	DC 6–14V / Max 70mA
LED Indicator	Red and Green LEDs
Operating Temperature	-20°C to 65°C (-10°C to +70°C)
Material	ABS + PC with texture
Operating Humidity	10–90% relative humidity (non-condensing)
Beeper	Yes
Ingress Protection	KR500-E/M: IP65 KR501-E/M: IP65 KR502-E/M: IP64 KR503-E/M: IP65
