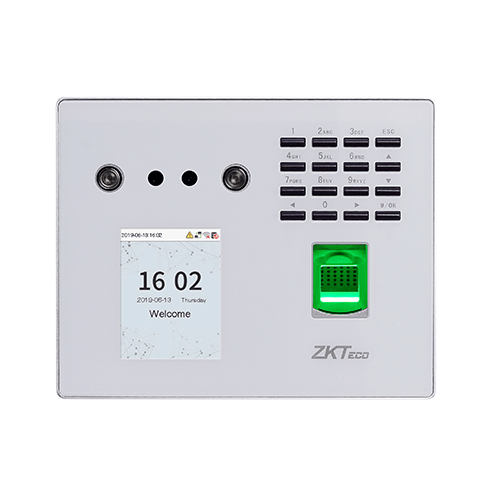

ZKTeco MB560-VL Visible Light Hybrid Biometric Terminal
The ZKTeco MB560-VL is a multi-biometric identification terminal powered by Visible Light Facial Authentication and ZKTeco’s advanced algorithms. Designed for time attendance and access control, it offers accurate, touchless recognition from up to 2 meters, high tolerance to different poses, and strong anti-spoofing technology—making it ideal for modern workplaces and dynamic environments.
Key Features
Visible Light Facial Recognition
Detects and verifies faces from 0.3m to 2m with high accuracy and fast processing.Enhanced Deep Learning Algorithm
Tolerates head rotation (±25°) and tilt (±35°) while providing robust anti-spoofing against photo/video attacks.Multi-Biometric Authentication
Supports fingerprint, face, RFID cards, and password verification.High Storage Capacity
Handles up to 10,000 users, 3,000–5,000 fingerprints, 3,000–5,000 faces, and 100,000–200,000 records.Flexible Connectivity
Comes with TCP/IP and optional Wi-Fi, plus electric lock, door sensor, and exit button integration.
Specifications
Feature | Specification |
---|---|
Model | MB560-VL |
Display | 2.8″ TFT Color LCD (240×320) |
Camera | 1MP Binocular WDR |
OS | Linux |
Hardware | Dual Core CPU @1.0GHz, 512MB RAM, 8GB ROM, Speaker, Supplement Light |
Fingerprint Sensor | ZK Optical Sensor |
Authentication Methods | Fingerprint / Face / Card / Password |
Face Capacity | 3,000 (Optional: 5,000) |
Fingerprint Capacity | 3,000 (Optional: 5,000) |
Card Capacity | 10,000 |
User Capacity | 10,000 |
Record Capacity | 100,000 (Optional: 200,000) |
Verification Speed | <0.5s (Fingerprint), <0.35s (Face) |
FAR / FRR | ≤0.01% / ≤0.02% (Face), ≤0.0001% / ≤0.01% (Fingerprint) |
Communication | TCP/IP, Optional Wi-Fi |
Standard Functions | ADMS, DST, Work Code, Photo Capture, Tamper Alarm, Schedule Bell, HTTPS/SSH |
Optional Functions | ID & IC Cards, Multi-Tech Card Module, Wi-Fi |
Power Supply | DC 12V 1.5A |
Operating Temperature | 0°C – 45°C |
Operating Humidity | 20% – 80% RH |
Dimensions (mm) | 170 × 138 × 38.55 |
Why Choose ZKTeco MB560-VL
Advanced Visible Light Facial Recognition with anti-spoofing
Multi-modal security: Face, Fingerprint, Card, Password
High capacity for up to 10,000 users and 200,000 transactions
Fast and touchless—ideal for modern workplaces
Compatible with on-premise and cloud-based ZKTeco software
