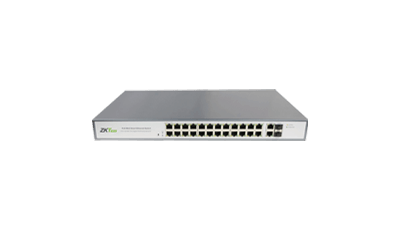

ZKTeco PE24-240 PoE Switch
The PE24-240 is an enterprise-class PoE switch with 24 Fast Ethernet ports and 2 Gigabit combo uplinks. It delivers reliable data and power for large surveillance or access-control systems, with advanced management and security features.
Key Features
24 PoE + 2 Gigabit Combo Ports
Flexible 10/100 Mbps PoE ports with 10/100/1000 Mbps uplink options.High PoE Budget
Up to 30 W per port, with a 400 W total budget for IP cameras, access points, or other powered devices.Enterprise Switching Capacity
Non-blocking 64 Gbps bandwidth, 4 MB buffer, and 16 K MAC address table.Advanced Security & VLAN
Supports 802.1Q VLAN, ACLs, port security, DHCP snooping, and spanning tree (STP/RSTP/MSTP).Smart Management
Web-based management, SNMP, port mirroring, and QoS for optimized traffic handling.
Specifications
Feature | Specification |
---|---|
Model | PE24-240 |
Ethernet Ports | 24× 10/100 Mbps PoE, 2× 10/100/1000 Mbps combo uplinks |
PoE Standard | IEEE 802.3af / 802.3at |
PoE Output | 30 W per port, 400 W total |
Switching Bandwidth | 64 Gbps (non-blocking) |
Forwarding Rate | 6.55 Mpps |
Buffer Memory | 4 MB |
MAC Address Table | 16 K |
MTBF | 100,000 h |
Power Input | AC 240 V, 50/60 Hz |
Protection | CE, FCC, VCCI, EN55022 Class B |
Operating Temp. | −20 °C ~ +50 °C |
Humidity | 10% – 90% (non-condensing) |
VLAN | Port-based & 802.1Q, up to 4K VLANs |
Spanning Tree | STP, RSTP, MSTP |
Multicast | IGMP v1/v2 snooping, up to 1024 groups |
QoS | Priority queues, scheduling, rate limiting |
Dimensions (L×W×H) | 440 × 290 × 44.5 mm |
Weight | Approx. 4 kg |
Warranty | 1 Year |
Why Choose ZKTeco PE24-240
Ideal for medium-to-large PoE deployments
Advanced security, VLAN, and spanning tree features
High PoE power budget (400 W) for demanding devices
Solid build quality with full management tools
