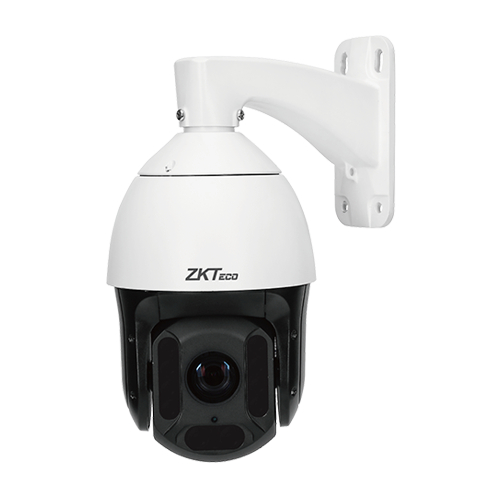

ZKTeco PL-35C33D 5MP HD Analog PTZ Camera
The PL-35C33D is a high-performance 5MP PTZ camera engineered for industrial and commercial surveillance. With 33x optical zoom, advanced low-light CMOS sensor, and rugged IP66 housing, it delivers clear images, wide coverage, and reliable operation in harsh environments.
Key Features
Powerful PTZ Control
Pan 0–360°, tilt 0–90°, pan speed up to 200°/s and tilt speed up to 180°/s for extensive area monitoring.33x Optical Zoom
f=4.6–152mm lens provides detailed observation over long distances.5MP Low-Light Imaging
1/2.7” CMOS sensor, DWDR, BLC, and 2D/3D noise reduction for superior image clarity in challenging light conditions.Infrared Night Vision
IR illumination up to 120 meters ensures 24/7 surveillance capability.Durable & Weatherproof
IP66-rated, rugged casing with lightning protection (EDS 4000V) supports operation in extreme conditions.Advanced PTZ Functions
128 presets, 4 scan/tour/pattern modes, and Pelco-D/P protocols allow flexible monitoring and automation.
Specifications
| Feature | Specification |
|---|---|
| Model | PL-35C33D |
| Image Sensor | 1/2.7” 5MP Low-Light CMOS |
| Lens | 33X f=4.6–152mm |
| Field of View (FOV) | 66.1° (W) – 2.46° (T) |
| Scanning System | Progressive |
| Electronic Shutter | 1/25s – 1/50,000s |
| Minimum Illumination | 0.1 Lux / F2.0 (color), 0 Lux with IR |
| IR Distance | Up to 120 meters |
| Mirror / Flip | 90° |
| Resolution | 5MP (2600 × 1944) |
| Privacy Mask | Up to 4 areas |
| Baud Rate (RS485) | 2400 / 4800 / 9600 / 19200 bps |
| WDR / BLC | DWDR / Supported |
| Day/Night Mode | Auto (ICR) / Color / B/W |
| White Balance | Auto / Manual / Indoor / Outdoor |
| Noise Reduction | 2D & 3D DNR |
| PTZ Pan/Tilt Range | Pan 0–360°, Tilt 0–90° |
| Pan/Tilt Speed | Pan 0–200°/s, Tilt 0–180°/s |
| Presets | 128 |
| PTZ Mode | 4 Scan, 4 Tour, 4 Pattern |
| Protocol | Pelco-D, Pelco-P |
| Ingress Protection | IP66 |
| Operating Temperature | -20°C – 60°C |
| Power Supply | DC 24V / 2A |
| Lightning Protection | EDS 4000V |
| Default Bracket | Wall mount |
| Dimensions (Ø × H) | Ø185 × 374 mm |
| Net Weight | 6.5 kg |
| Gross Weight | 7 kg |
| Type | 5MP PTZ Camera |
Why Choose PL-35C33D
5MP HD PTZ with 33x optical zoom for precise long-range monitoring
Excellent low-light performance with DWDR & 2D/3D noise reduction
IP66 weatherproof casing and lightning protection for extreme environments
128 presets and advanced PTZ modes for automated monitoring
IR night vision up to 120m ensures continuous 24/7 security
