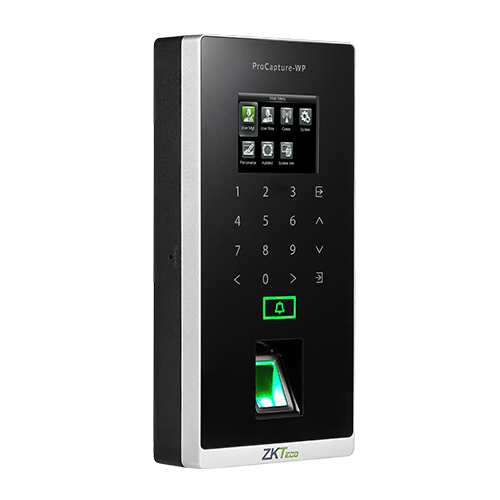

ZKTeco ProCapture-WP Fingerprint Access Control Terminal
KSh 42,000.00
ZKTeco ProCapture-WP Fingerprint Access Control Terminal
| Capacity | 20,000 fingerprints, 10,000 cards |
| Transactions | 100,000 records |
| Display | 2.4” TFT LCD |
| Protection | IP65 Dust & Water Resistant |
| Verification | Fingerprint, Card, Password |
ZKTeco ProCapture-WP Fingerprint Access Control Terminal
The ZKTeco ProCapture-WP is a waterproof access control terminal powered by the advanced Z-ID fingerprint sensor. Designed with IP65 protection, it offers reliable fingerprint recognition in outdoor environments and ensures high accuracy even for dry, wet, or rough fingers. Built on the ZMM220 hardware platform with a 1.2GHz CPU, it delivers fast identification, robust security, and versatile access control functions.
Key Features
High Capacity Storage
Manages up to 20,000 fingerprints, 10,000 cards, and 100,000 transactions.IP65 Dust & Water Protection
Suitable for both indoor and outdoor installations.Fast 1.2GHz CPU
Ensures rapid fingerprint verification with optimized ZKFinger V10.0 algorithm.Flexible Access Control Interfaces
Includes lock relay, alarm output, door sensor, and doorbell support.Multiple Verification Modes
Fingerprint, password, card, or combinations for enhanced security.
Specifications
| Feature | Specification |
|---|---|
| Fingerprint Capacity | 20,000 |
| Card Capacity | 10,000 |
| Transaction Capacity | 100,000 |
| Display | 2.4-inch TFT LCD |
| Processor & Memory | 1.2GHz CPU, 128MB RAM, 256MB Flash |
| Communication | TCP/IP, RS485 (slave), Wiegand Input/Output, Security Relay Box |
| Access Control Interface | Lock Relay, Alarm Output, Exit Button, Door Sensor, Doorbell Output |
| Ingress Protection | IP65 |
| Verification Modes | Fingerprint, Card, Password, Multi-factor options |
| Algorithm | ZKFinger V10.0 |
| Accuracy | FAR ≤ 0.0001%, FRR ≤ 0.01% |
| Special Functions | Anti-passback, Duress mode, Record Query, Custom Wallpapers |
| Operating Temperature | -10°C to 50°C |
| Operating Voltage | 12V DC (<500mA) |
| Dimensions | 202.3 × 96.8 × 35.0 mm |
| Compatibility | RS485 FP Slave Reader, Wiegand Slave, ZKBioSecurity Software |
| Weight | Approx. 0.7 kg |
| Warranty | 1 Year |
Why Choose ZKTeco ProCapture-WP
Rugged IP65-rated design for outdoor use
Large storage capacity for users and records
High-speed 1.2GHz processor with advanced algorithm
Multiple connectivity & access control interfaces
Supports fingerprint, card, and password combinations
