ZKTeco ProCapture-X Fingerprint Access Control Terminal
KSh 32,000.00

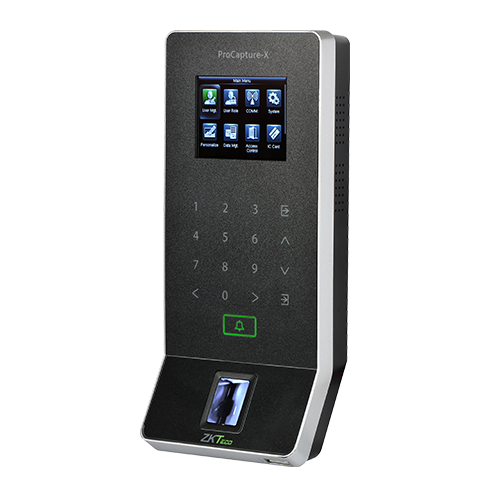

ZKTeco ProCapture-X Fingerprint Access Control Terminal
| Model | ZKTeco ProCapture-X |
| Capacity | 20,000 fingerprints, 50,000 cards |
| Transactions | 500,000 |
| Display | 2.4″ TFT LCD with Touch Keypad |
| Power | 12V DC 3A / PoE (802.3at) |
ZKTeco ProCapture-X Fingerprint Access Control Terminal
The ZKTeco ProCapture-X is a professional-grade PoE fingerprint access control terminal built with Z-ID technology for unmatched accuracy and security. It delivers superior identification performance for dry, wet, and rough fingers, while providing live finger detection to prevent spoofing. Designed with a sleek horizontal layout and touch keypad, it supports both standalone use or integration with third-party access control panels via Wiegand.
Key Features
-
Advanced Z-ID Fingerprint Sensor
High identification rate with live finger detection for maximum security. -
Large User Capacity
Supports up to 20,000 fingerprints, 50,000 cards, and 500,000 transactions. -
Flexible Connectivity
Works standalone or with third-party panels via Wiegand, TCP/IP, RS485, or optional Wi-Fi. -
Power over Ethernet (PoE)
IEEE 802.3at standard PoE support for simplified installation. -
Enhanced User Interface
2.4-inch TFT LCD display, touch keypad, and Hi-Fi voice prompts for intuitive operation.
Specifications
| Feature | Specification |
|---|---|
| Brand | ZKTeco |
| Model | ProCapture-X |
| Fingerprint Capacity | 20,000 |
| Card Capacity | 50,000 (EM / IC optional) |
| Transaction Capacity | 500,000 |
| CPU & Memory | 1.2GHz CPU / 128MB RAM / 256MB Flash |
| Fingerprint Algorithm | ZKFinger V10.0 (FAR ≤ 0.0001%, FRR ≤ 0.01%) |
| Display | 2.4″ TFT-LCD screen |
| Keypad | Touch keypad |
| Identification Modes | Fingerprint / Card / Multiple Verification |
| Access Interfaces | Lock relay, alarm output, auxiliary input, exit button, door sensor, SRB |
| Communication | TCP/IP, RS485, USB Host, Wiegand In/Out, Wi-Fi (optional) |
| Power Supply | 12V DC 3A / PoE (IEEE 802.3at) |
| Current Consumption | < 500mA |
| Operating Temperature | 0°C – 45°C |
| Operating Humidity | 20% – 80% |
| Dimensions | 200.5 × 88.5 × 28.7 mm |
| Special Functions | Live Finger Detection, Duress Mode, Anti-Passback, Access Levels, Bell Schedule |
| Optional Functions | ZK Encrypted Card, Fingerprint Card, Wireless Doorbell, Backup Battery |
| Warranty | 1 Year |
Why Choose ZKTeco ProCapture-X
-
Industry-leading accuracy with Z-ID fingerprint recognition
-
Live finger detection prevents spoofing for maximum security
-
Large capacity for high-traffic workplaces
-
Flexible installation with PoE and optional Wi-Fi
-
Supports standalone or integrated access control setups
