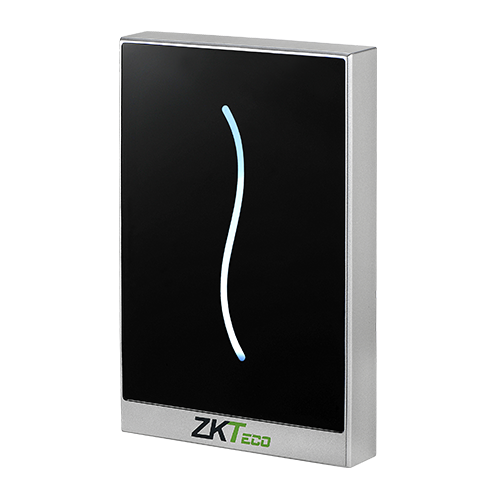

ZKTeco ProID PD10 Card Reader
The PD10 is a compact and durable card reader supporting 125KHz EM and 13.56MHz MIFARE/IC card technologies. Its robust design and IP65 protection make it suitable for indoor and outdoor applications, with fast reading speed and easy Wiegand integration.
Key Features
Supports Multiple Card Technologies
Compatible with EM, MIFARE, DESFire, FeliCa, and Legic cards.Fast and Accurate Reading
≤300ms reading time, read range up to 3.5cm.Easy Integration
Wiegand 26/34-bit adjustable output, external LED and buzzer control.Durable and Weatherproof
IP65 rating ensures protection in outdoor environments.User Feedback
Pulsing white standby LED and audible beep for operation feedback.
Specifications
| Feature | Specification |
|---|---|
| Model | ProID PD10 |
| Read Range | 3.5 cm |
| Reading Time | ≤300 ms |
| Input Port | External LED & buzzer control |
| Output Port | Wiegand 26/34 bit adjustable |
| Power/Current | 7–13V DC / <80 mA |
| LED | Pulsing white standby light |
| Audio | Beep |
| Operating Temp | -10°C ~ +65°C |
| Operating Humidity | 10–90% non-condensing |
| Index Protection | IP65 |
| Dimensions | 80.5 × 44 × 15 mm |
Why Choose ZKTeco ProID PD10
Compact and modern design for any environment
Multiple card technology compatibility
Fast and reliable card reading
IP65 weatherproof rating for outdoor use
Easy integration with access control systems
