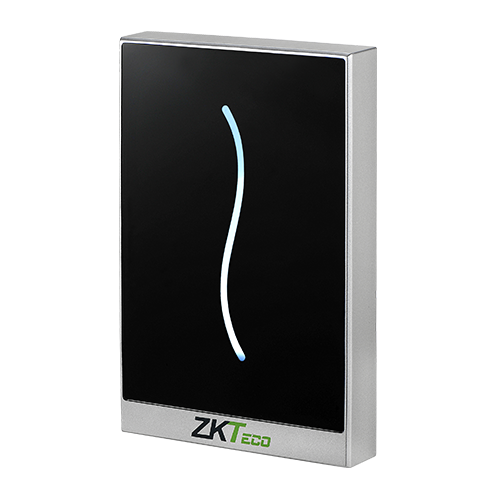

ZKTeco ProID PD20 Card Reader
The PD20 is a versatile card reader designed for indoor/outdoor access control. It supports EM/IC cards, offers fast reading up to 5cm, and IP65-rated housing ensures reliable operation in harsh conditions.
Key Features
Supports Multiple Card Types
EM, MIFARE, DESFire, FeliCa, and Legic cards.Fast Reading Performance
≤300ms, with a read range up to 5 cm.Easy System Integration
Wiegand 26/34-bit output, external LED/buzzer control.Durable & Weatherproof
IP65 index protection for indoor/outdoor use.User Feedback
Pulsing white LED and audible beep during operation.
Specifications
| Feature | Specification |
|---|---|
| Model | ProID PD20 |
| Read Range | 5 cm |
| Reading Time | ≤300 ms |
| Input Port | External LED & buzzer control |
| Output Port | Wiegand 26/34 bit adjustable |
| Power/Current | 7–13V DC / <80 mA |
| LED | Pulsing white standby light |
| Audio | Beep |
| Operating Temp | -10°C ~ +65°C |
| Operating Humidity | 10–90% non-condensing |
| Index Protection | IP65 |
| Dimensions | 90 × 90 × 16 mm |
Why Choose ZKTeco ProID PD20
Supports multiple card technologies
Fast 5 cm read range for quick access
IP65 protection for outdoor reliability
Easy integration with access control systems
Modern and robust design
