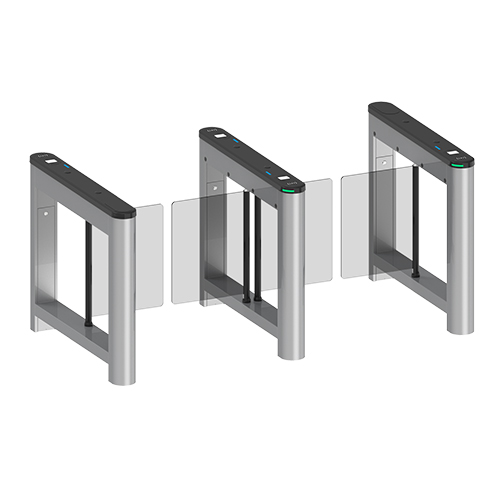

ZKTeco Saturn-S1000 Swing Barrier Turnstile
KSh 220,000.00
ZKTeco Saturn-S1000 Swing Barrier Turnstile
| Model | Saturn-S1000 |
| Lane Width | 650 / 900 mm |
| Authentication | RFID, QR, Face |
| Flow Rate | Up to 35 users/min |
| Dimensions | 1200 × 150 × 1020 mm |
ZKTeco Saturn-S1000 Swing Barrier Turnstile
The Saturn-S1000 from ZKTeco is a premium single-lane swing barrier designed for reliable and elegant access control. Its slim profile, sturdy SPCC steel body, and IPX4 water-resistant finish make it ideal for offices, gyms, schools, and semi-outdoor lobbies.
Key Features
-
Streamlined Chassis with IPX4 Rating
Durable SPCC steel and 2.5D tempered-glass lid provide style and splash protection. -
Single-Lane Access
Optimized for one-way or bidirectional pedestrian flow with 650–900 mm channel widths. -
Flexible Authentication
Supports RFID, QR codes, and optional facial recognition. -
Safety Sensors
Four infrared pairs offer anti-tailgating and anti-pinch protection. -
Quiet, Fast Operation
DC brushless motor with 1 s adjustable swing; noise level <60 dB.
Specifications
| Feature | Specification |
|---|---|
| Model | Saturn-S1000 |
| Lane Type | Single lane |
| Lane Width | 650 mm (std), 900 mm (opt) |
| Movement Type | Swing, DC brushless motor, avg. 1 s per cycle |
| Materials | SPCC steel chassis, polycarbonate & tempered-glass lid |
| Indicators | Top & slide LEDs (blue/green/red), internal speaker |
| Authentication | RFID, QR code, facial (optional) |
| Flow Rate | RFID 35 pp/min, QR 30, Face 15 |
| IR Sensors | 4 pairs |
| Communication | RS485, fire-alarm relay |
| Controllers | C3 / InBio series or custom |
| Dimensions (L×W×H) | 1200 × 150 × 1020 mm |
| Weight | 50 kg |
| Power Supply | 110 / 220 V AC ±10% @ 50–60 Hz |
| Power Consumption | 10 VA standby, 40 VA op |
| MTBF | 3 million cycles |
| Operating Conditions | –30 °C to 70 °C; 5–90 %RH (non-condensing) |
| Certifications | CE, FCC |
| Safety & Security | Anti-tailgating, anti-pinch, fail-safe open on fire/power loss |
| Installation | Pre-assembled; flat level floor or optional base plate |
| Supported Software | ZKBio CVAccess / CVSecurity (per controller) |
Why Choose Saturn-S1000
-
Compact, modern design fits premium interiors
-
Reliable throughput with low noise and minimal wear
-
Multiple authentication options for flexible security
-
Infrared safety and emergency auto-open
-
Semi-outdoor IPX4 protection
