ZKTeco Saturn-S1200 Swing Barrier Turnstile
KSh 220,000.00
ZKTeco Saturn-S2000 Series Swing Barrier Turnstile
| Model | Saturn-S1200 |
| Lane Width | 650 / 900 mm |
| Authentication | RFID, QR, Face |
| Flow Rate | Up to 35 users/min |
| Dimensions | 1200 × 150 × 1020 mm |

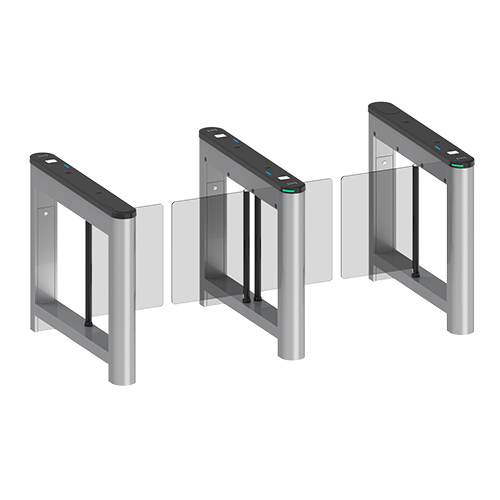

ZKTeco Saturn-S1200 Swing Barrier Turnstile
The Saturn-S1200 is the dual-swing version of the Saturn-S1000, built for secondary or wide lanes while maintaining the same refined look and dependable performance.
Key Features
Dual-Swing Extension
Designed as an auxiliary lane or for larger passages.Versatile Credentials
Accepts RFID, QR code, or optional facial authentication.Safety & Reliability
Infrared pinch protection and auto-open on power failure.Lightweight Build
Only 30 kg, simplifying installation and relocation.Unified Design
Shares finishes and dimensions with S1000 for seamless layouts.
Specifications
| Feature | Specification |
|---|---|
| Model | Saturn-S1200 |
| Lane Type | Dual swing (additional lane) |
| Lane Width | 650 mm (std), 900 mm (opt) |
| Movement Type | Swing, DC brushless motor, avg. 1 s per cycle |
| Materials | SPCC steel chassis, polycarbonate & tempered-glass lid |
| Indicators | Top & slide LEDs (blue/green/red), internal speaker |
| Authentication | RFID, QR code, facial (optional) |
| Flow Rate | RFID 35 pp/min, QR 30, Face 15 |
| IR Sensors | 4 pairs |
| Communication | RS485, fire-alarm relay |
| Controllers | C3 / InBio series or custom |
| Dimensions (L×W×H) | 1200 × 150 × 1020 mm |
| Weight | 30 kg |
| Power Supply | 110 / 220 V AC ±10% @ 50–60 Hz |
| Power Consumption | 10 VA standby, 40 VA op |
| MTBF | 3 million cycles |
| Operating Conditions | –30 °C to 70 °C; 5–90 %RH (non-condensing) |
| Certifications | CE, FCC |
| Safety & Security | Anti-tailgating, anti-pinch, fail-safe open on fire/power loss |
| Installation | Pre-assembled; flat level floor or optional base plate |
| Supported Software | ZKBio CVAccess / CVSecurity (per controller) |
Why Choose Saturn-S1200
Ideal companion lane for S1000 installations
Consistent styling across multiple lanes
Supports the same broad authentication methods
Light yet robust for frequent use
Auto-opens in power or fire emergencies
