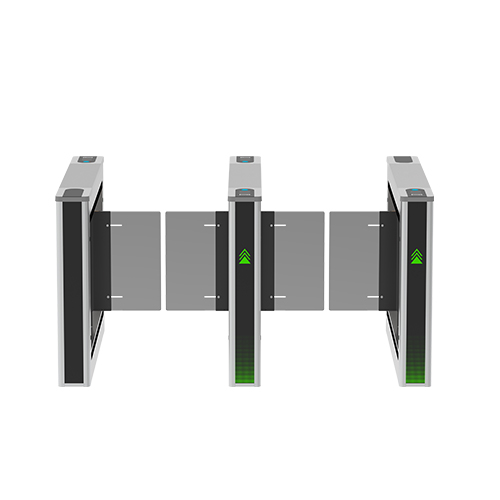

ZKTeco Saturn-S2000 Series Swing Barrier Turnstile
KSh 220,000.00
ZKTeco Saturn-S2000 Series Swing Barrier Turnstile
| Models | Saturn-S2000 / Saturn-S2200 |
| Lane Width | 600–900 mm acrylic, up to 1200 mm stainless |
| Authentication | Face, QR, RFID |
| Flow Rate | Up to 35 users/min |
| Dimensions | 1500 × 180 × 1020 mm |
ZKTeco Saturn-S2000 Series Swing Barrier Turnstile
The Saturn-S2000 Series from ZKTeco is a rugged swing barrier turnstile engineered for secure, comfortable passage in high-traffic environments. Built with stainless steel (SUS304) and rated IP56 for dust and water protection, it delivers reliable indoor or sheltered outdoor operation.
Key Features
Stainless Steel Chassis with IP56 Rating
Durable SUS304 body protects against water and dust.Wide Channel Options
Adjustable 600–900 mm acrylic or up to 1200 mm stainless steel for pedestrians or motorcycles.Advanced Infrared Safety
12 standard (expandable to 18) IR pairs with dual-zone anti-pinch detection.Versatile Authentication
Supports facial recognition, QR code, and RFID card verification.Smooth & Quiet Performance
DC brushless motor with adjustable 1 s movement; <60 dB noise level.
Specifications
| Feature | Specification |
|---|---|
| Models | Saturn-S2000 (Single lane), Saturn-S2200 (Dual lane) |
| Lane Width | 600–900 mm (acrylic), up to 1200 mm (stainless steel) |
| Movement Type | Swing, DC brushless motor, avg. 1 s per cycle |
| Materials | SUS304 stainless steel chassis, acrylic or stainless barriers |
| Indicators | Top & side LEDs: blue/green/red; internal speaker |
| Authentication | Facial, QR code, RFID (fingerprint optional) |
| Flow Rate | RFID: 35 pp/min; QR: 30 pp/min; Face: 15 pp/min |
| IR Sensors | 12 pairs (standard), 18 pairs (optional) |
| Communication | RS485, fire-alarm relay |
| Controllers | C3 / InBio Series or 3rd-party compatible |
| Dimensions | 1500 × 180 × 1020 mm |
| Weight | S2000: 100 kg net; S2200: 60 kg net |
| Power Supply | 110 / 220 V AC ±10% @ 50–60 Hz |
| Power Consumption | 20 VA standby, 40 VA operation |
| MTBF | 5 million cycles |
| Operating Conditions | –30 °C to 70 °C, 5–90 % RH |
| Certifications | CE, FCC |
| Safety & Security | Anti-tailgating, dual-zone anti-pinch, fail-safe barrier open, fire alarm input |
| Installation | Pre-assembled; flat level floor (base plate optional) |
| Supported Software | ZKBio CVAccess / CVSecurity (per controller) |
Why Choose Saturn-S2000 Series
IP56 stainless steel body for durability indoors or out
Adjustable lane width supports motorcycles as well as pedestrians
12–18 IR sensors for precise detection and pinch prevention
Quiet, efficient DC motor with 5 M-cycle reliability
Multi-authentication for flexible access control
