ZKTeco SBTL7011 Swing Barrier Turnstile

KSh 230,000.00

ZKTeco SBTL7011 Swing Barrier Turnstile


Lane Width	660 mm (≤ 900 mm optional)
Throughput	RFID: up to 30/min
Dimensions	1200 × 150 × 1028 mm
Material	Powder-coated cold-rolled steel
Movement	Swing Barriers

Category: Zkteco

Description
Reviews (0)

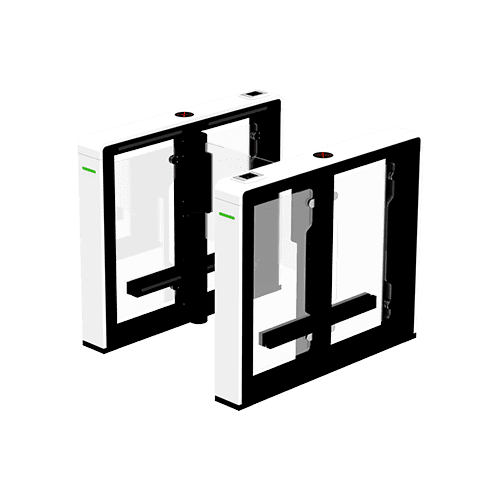

ZKTeco SBTL7011 Swing Barrier Turnstile

The ZKTeco SBTL7011 is a compact swing barrier turnstile featuring a built-in RFID reader and controller. With a slim design and durable housing, it ensures secure, smooth, and fast access control for single-lane applications.

Key Features

Integrated RFID & Controller
Plug-and-play setup with pre-installed RFID reader.
Slim & Space-Saving
150 mm cabinet width for modern environments.
Silent & Efficient
Brushless motor with ≤30 dB operation noise.
Emergency Mode
Barriers swing open automatically during power failures.
Reliable Performance
Designed for up to 5 million cycles (MCBF).

Specifications

Feature	Specification
Model	SBTL7011
Material	Cold-rolled sheet with powder coating
Dimensions	1200 × 150 × 1028 mm
Lane Width	660 mm (optional ≤ 900 mm)
Throughput Rate	RFID: up to 30 users/min
Power Supply	AC 110V/220V, 50/60 Hz
Running Power	30W
Operating Temperature	-20 °C to 70 °C
Operating Humidity	5% – 95%
Infrared Sensors	6 pairs (optional 10)
Weight	120 kg (net), 160 kg (with packing)
LED Indicators	Yes
Barrier Type	Swing (Acrylic / optional tempered glass)
MCBF	5 million cycles
Emergency Mode	Yes (swing open)
Opening Time	0.8 s
Opening Noise	≤ 30 dB
Warranty	1 Year
