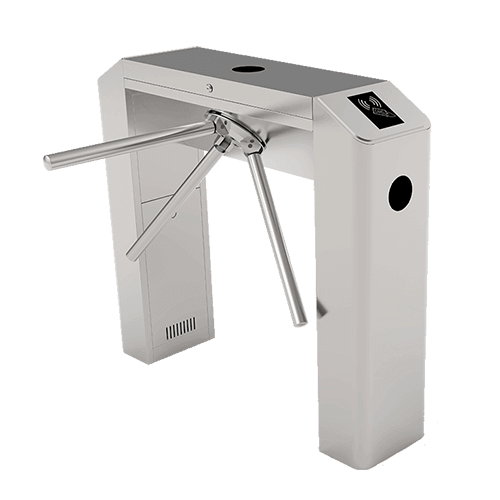

ZKTeco TS2022 Pro Tripod Turnstile
KSh 260,000.00
ZKTeco TS2022 Pro Tripod Turnstile
| Lane Width | 505mm |
| Speed | RFID: 30/min, FP: 25/min |
| Material | SUS304 stainless steel |
| Dimensions | 1110 × 280 × 987 mm |
| Security | Medium (MCBF: 1 million) |
ZKTeco TS2022 Pro Tripod Turnstile
The ZKTeco TS2022 Pro is a compact tripod turnstile designed for medium-level security access control. Built with SUS304 stainless steel, it offers smooth rotation, stable throughput, and durable performance for both indoor and semi-outdoor installations. Supporting RFID and fingerprint authentication, it ensures efficient access management in offices, schools, and public facilities.
Key Features
Durable Stainless Steel Design
SUS304 cabinet, lid, and barrier for long-lasting performance.High Throughput Speed
Handles up to 30 users/min (RFID) and 25 users/min (fingerprint).Compact & Space-Saving
Slim footprint with a 505mm lane width for efficient installations.Emergency Mode Support
Automatically unlocks to allow free passage during emergencies.Flexible Accessories
Options include counters, SUS316 housing upgrade, and remote control.
Specifications
| Feature | Specification |
|---|---|
| Power Requirements | AC 100–120V or 200–240V, 50/60Hz |
| Power Consumption | Running: 18W / Standby: 6W |
| Working Temperature | -28°C to 60°C |
| Working Humidity | 5% – 80% (non-condensing) |
| Speed of Throughput | RFID: max. 30/min, Fingerprint: max. 25/min |
| Lane Width | 505mm |
| Footprint | 785 × 1110 mm |
| Dimensions (L×W×H) | 1110 × 280 × 987 mm |
| Dimensions (Packed) | 1175 × 370 × 1070 mm |
| Net Weight | 42 kg |
| Weight (Packed) | 48 kg |
| LED Indicator | Supported |
| Cabinet Material | SUS304 stainless steel (SUS316 optional) |
| Lid Material | SUS304 stainless steel (SUS316 optional) |
| Barrier Material | SUS304 stainless steel |
| Barrier Movement | Rotation |
| Emergency Mode | Supported |
| Security Level | Medium |
| MCBF | 1 million cycles |
| Options / Accessories | Counter, SUS316 Cabinet/Lid, Remote Control |
| Warranty | 1 year |
Why Choose ZKTeco TS2022 Pro
Compact tripod turnstile with durable stainless steel build
High throughput with RFID and fingerprint support
Emergency-ready with automatic unlock mode
Cost-effective access control solution for medium-security sites
Flexible upgrade options for enhanced durability
