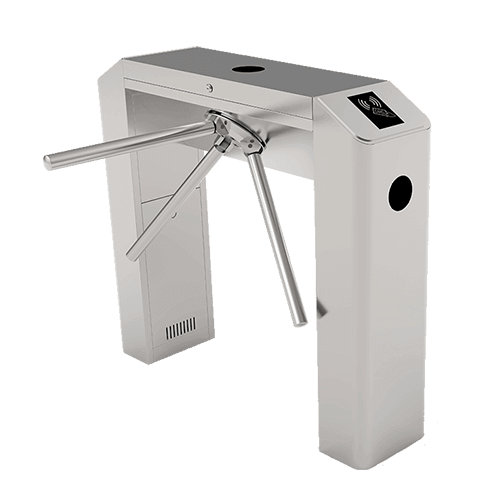

ZKTeco TS2222 Tripod Turnstile
The ZKTeco TS2222 is a dual-lane tripod turnstile designed for high-traffic access control applications. Built from durable stainless steel, it provides smooth, silent, and efficient operation, making it ideal for offices, stadiums, schools, and public transportation facilities.
Key Features
Dual-Lane Design
Allows efficient management of two-way pedestrian traffic in busy areas.Durable Stainless Steel Build
SUS304 stainless steel for corrosion resistance and long service life.Bi-Directional Operation
Supports controlled entry and exit with automatic reset function.Integration Ready
Compatible with RFID, fingerprint, face, and QR code readers.Safe & Cost-Effective
Anti-tailgating mechanism with compact, economical design.
Specifications
| Feature | Specification |
|---|---|
| Model | ZKTeco TS2222 Tripod Turnstile |
| Material | Stainless Steel SUS304 |
| Dimensions | Approx. 1400 × 280 × 980 mm |
| Passage Width | 550 mm per lane |
| Throughput Rate | 30–40 persons/min per lane |
| Direction | Bi-directional |
| Power Supply | AC 100–120V / 200–240V, 50/60 Hz |
| Operating Temperature | -28 °C to 60 °C |
| Operating Humidity | 5% – 80% |
| Communication | RS485, Dry contact, or TCP/IP (with panel) |
| Integration | Supports RFID, fingerprint, face, QR code |
| Weight | Approx. 65–75 kg |
| Warranty | 1 Year |
Why Choose ZKTeco TS2222
Dual-lane design for high-traffic environments
Durable stainless steel housing with sleek finish
Smooth, quiet, and reliable mechanism
Compatible with multiple authentication methods
Cost-effective solution for modern access control
