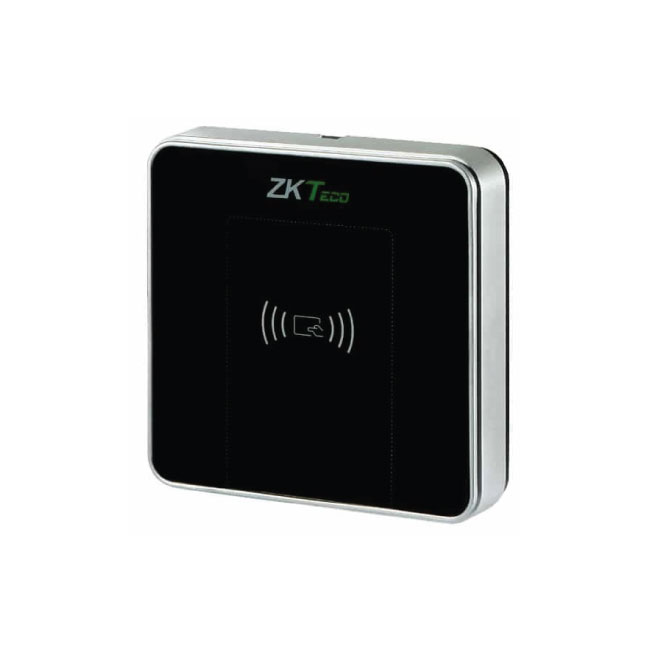

ZKTeco UR10R-1F UHF Card Issuer

Original price was: KSh 30,000.00.Current price is: KSh 29,000.00.

ZKTeco UR10R-1F UHF Card Issuer


Model	UR10R-1F
Frequency	902–928 MHz
Reading Range	20–40 cm
Cards Supported	Encrypted UHF tags and cards
Interface	USB analog keyboard output
Dimension	107 × 107 × 23 mm (±3 mm)

Category: Zkteco

Description
Reviews (0)

ZKTeco UR10R-1F UHF Card Issuer

The UR10R-1F is an ultra high frequency (UHF) read-only card issuer designed to read ZKTeco encrypted UHF tags. Operating at 902–928 MHz, it supports EPCglobal UHF Class 1 Gen 2 and ISO 18000-6C standards. With USB plug-and-play connectivity, stable reading performance, and multi-system support, it’s perfect for secure access control environments.

Key Features

Encrypted UHF Card Reading
Reads ZK encrypted UHF tags and cards reliably.
Ultra High Frequency & Standards Compliance
Supports EPCglobal UHF Class 1 Gen 2 and ISO 18000-6C.
Plug-and-Play USB Interface
Quick connection to computers without driver installation.
Stable & Reliable Performance
Control chip with watchdog and voltage detection ensures consistency.
Multi-System Compatibility
Works seamlessly with Windows and Linux systems.

Specifications

Feature	Specification
Model	UR10R-1F
Cards Supporting	Encrypted UHF tags and cards
Working Frequency	902–928 MHz
Reading Distance	20–40 cm (environment dependent)
Protocol	EPCglobal UHF Class 1 Gen 2, ISO 18000-6C
Communication Interface	USB analog keyboard output
Supported Tags	UHF1-5F, UHF1-10F
Working Voltage	DC 5V (±4%)
Working Current	50–300 mA
Working Temperature	-10°C ~ +50°C
Storage Temperature	-20°C ~ +80°C
Dimension	107 × 107 × 23 mm (±3 mm), wire length: 1,500 mm
