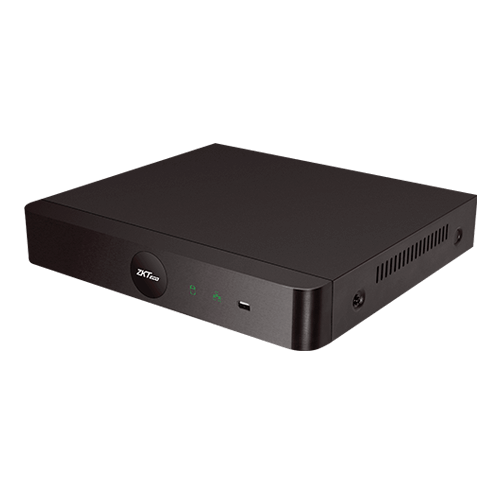

ZKTeco Z8404XE-CL H.265 5MP Lite DVR (4CH)
KSh 6,500.00
ZKTeco Z8404XE-CL H.265 5MP Lite DVR (4CH)
| Channels | 4CH BNC + 2CH IP |
| Resolution | 5MP Lite / 1080P / 720P |
| Video Codec | H.265 |
| Storage | 1 SATA (up to 8TB) |
| Network | TCP/IP, P2P, Mobile App |
ZKTeco Z8404XE-CL H.265 5MP Lite DVR (4CH)
The Z8404XE-CL is a 4-channel H.265 DVR that supports multiple video inputs, hybrid IP channels, and intelligent video analytics. It delivers 5MP Lite resolution preview and playback, ideal for small to medium video surveillance setups.
Key Features
-
4-Channel Video Input
Supports AHD, TVI, CVI, CVBS, and 6 IP channels. -
High-Resolution Preview & Playback
5MP Lite / 1080P / 1080P Lite / 720P support with HDMI output up to 4K UHD. -
Intelligent Video Analytics
Target counting, intrusion, tripwire, abandoned/missing objects, and human detection. -
Flexible Connectivity
TCP/IP network, P2P cloud, and support for multiple web browsers and mobile apps. -
Reliable Recording & Backup
Manual, motion, scheduled, or alarm-triggered recording with USB/network backup options.
Specifications
| Feature | Specification |
|---|---|
| Channels | 4CH BNC + 2CH IP |
| Resolution | 5MP Lite / 1080P / 1080P Lite / 720P |
| Video Compression | H.265 |
| Main Processor | Multi-core Embedded Processor |
| Operating System | Embedded Linux |
| Live View Capability | 6CH |
| Encoding Capability | 4CH 5MP Lite@12fps; 4MP Lite@15fps; 1080P@15fps |
| Storage | 1 SATA (up to 8TB) |
| HDMI / VGA Output | HDMI 1080P / VGA 1080P |
| Network Interface | 1 RJ-45 (10/100 Mbps) |
| USB Ports | 2 × USB 2.0 |
| Audio Input/Output | 4 in / 1 out |
| Power Supply | DC 12V / 2A |
| Power Consumption | Max. 24W without HDD |
| Dimensions (L×W×H) | 233 × 254 × 42 mm |
| Net Weight | 0.91 kg |
| Gross Weight | 1.41 kg |
| Warranty | 1 Year |
Why Choose Z8404XE-CL
-
4-channel hybrid DVR with 5MP Lite preview and playback
-
Supports multiple video standards (AHD, TVI, CVI, CVBS, IP)
-
Intelligent video analytics for enhanced security monitoring
-
Flexible network and cloud integration for remote access
-
Compact and energy-efficient design
