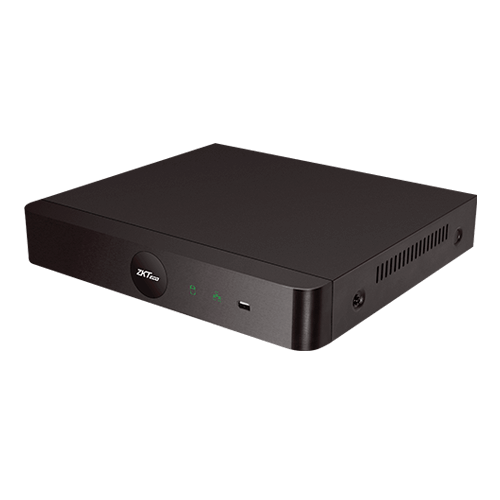

ZKTeco Z8404XEC-CL H.265 5MP Lite DVR (4CH)
KSh 7,500.00
ZKTeco Z8404XEC-CL H.265 5MP Lite DVR (4CH)
| Channels | 4CH BNC + 2CH IP |
| Resolution | 5MP Lite / 1080P / 720P |
| Video Codec | H.265 |
| Storage | 1 SATA (up to 8TB) |
| Network | TCP/IP, P2P, Mobile App |
ZKTeco Z8404XEC-CL H.265 5MP Lite DVR (4CH)
The Z8404XEC-CL is a 4-channel H.265 DVR designed for hybrid video surveillance systems. It supports multiple video inputs and intelligent video analytics, providing high-quality 5MP Lite resolution preview and playback for small to medium setups.
Key Features
-
4-Channel Video Input
Supports AHD, TVI, CVI, CVBS, and 6 IP channels. -
High-Resolution Preview & Playback
5MP Lite / 1080P / 1080P Lite / 720P with HDMI output up to 1080P. -
Intelligent Video Analytics
Target counting, intrusion, tripwire, abandoned/missing objects, human detection. -
Flexible Connectivity
TCP/IP, P2P cloud service, multiple web browsers login, ONVIF Profile S compatible. -
Reliable Recording & Backup
Manual, motion, scheduled, or alarm-triggered recording; USB/network backup options.
Specifications
| Feature | Specification |
|---|---|
| Channels | 4CH BNC + 2CH IP |
| Resolution | 5MP Lite / 1080P / 1080P Lite / 720P |
| Video Compression | H.265 |
| Main Processor | Multi-core Embedded Processor |
| Operating System | Embedded Linux |
| Live View Capability | 6CH |
| Encoding Capability | 4CH 5MP Lite@12fps; 4MP Lite@15fps; 1080P@15fps |
| Incoming Bandwidth | 64 Mbps |
| Storage | 1 SATA (up to 8TB) |
| HDMI / VGA Output | HDMI 1080P / VGA 1080P |
| Network Interface | 1 RJ-45 (10/100 Mbps) |
| USB Ports | 2 × USB 2.0 |
| Audio Input/Output | 4 in / 1 out |
| Audio over Coaxial | Supported |
| Power Supply | DC 12V / 2A |
| Power Consumption | Max. 24W without HDD |
| Dimensions (L×W×H) | 233 × 254 × 42 mm |
| Net Weight | 0.91 kg |
| Gross Weight | 1.41 kg |
| Type | H.265 DVR |
| Warranty | 1 Year |
Why Choose Z8404XEC-CL
-
4-channel hybrid DVR with 5MP Lite resolution
-
Supports multiple video formats and IP channels
-
Intelligent video analytics for advanced monitoring
-
Remote access via TCP/IP, P2P cloud, and mobile apps
-
Compact, energy-efficient, and easy to deploy
