ZKTeco Z8504NEQ-4P-S 4-Channel PoE BioSense NVR
KSh 48,000.00
ZKTeco Z8504NEQ-4P-S 4-Channel PoE BioSense NVR
| Channels | 4 (PoE) |
| Max Resolution | 8 MP |
| Storage | 1 × SATA (up to 8 TB) |
| Codec | H.265 / H.264 |
| Display | HDMI 4K / VGA |
ZKTeco Z8504NEQ-4P-S 4-Channel PoE BioSense NVR

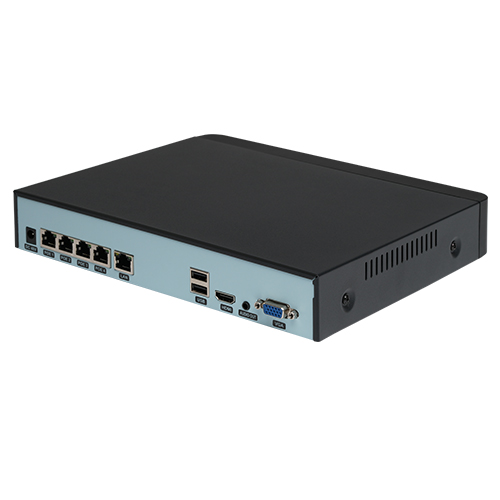

The ZKTeco Z8504NEQ-4P-S is a compact 4-channel BioSense Network Video Recorder with built-in PoE. It supports ultra-HD recording up to 8 MP, smart IVA analytics, and efficient 24/7 storage. Designed for schools, offices, industrial parks, and communities, this 1U recorder integrates perfectly with ZKTeco BioSense IP cameras.
Key Features
4-Channel UHD Recording with PoE
Supports 4 IP cameras up to 8 MP; provides power and data via PoE.Smart IVA Analytics
Line crossing, area detection, human/vehicle classification, target counting, object left/removed.Flexible Recording & Backup
Manual, schedule, motion, or IVA-triggered; USB/network backup.Smart Search & Playback
Locate footage quickly with human/vehicle filters, snapshots, and multi-speed playback.Dual 4K HDMI & VGA Outputs
Clear live view and configuration on UHD or standard monitors.
Specifications
| Feature | Specification |
|---|---|
| Model | Z8504NEQ-4P-S |
| Processor | Multi-core embedded CPU |
| OS | Embedded Linux |
| Interface | Local GUI & web browser |
| Video Input | 4 IP channels |
| Audio | 4 in (via IPC) / 1 out |
| Two-way Talk | Supported |
| Max Resolution | 8 MP (3840×2160) |
| Compression | H.265 / H.264 |
| Recording Resolutions | 8 MP / 5 MP / 3 MP / 1080P / 960P / 720P / D1 / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Max Decoding | 4 CH@8 MP (25/30 fps) |
| Bandwidth (In/Out) | 40 Mbps / 40 Mbps |
| Bit Rate | 16 Kbps–8192 Kbps (main), 50–700 Kbps (sub) |
| Playback Channels | 4 synchronous |
| Backup | USB / network |
| Storage | 1 × SATA (up to 8 TB) |
| PoE Ports | 4 (IEEE802.3af/at, 10/100 Mbps) |
| Display Outputs | HDMI 4K, VGA 1920×1080 |
| USB Ports | 3 × USB 2.0 |
| Network | 1 × RJ-45 (10/100 Mbps); TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket, P2P |
| Max Online Users | 20 |
| Mobile App | AntarView Pro+ (iOS/Android) |
| Management Platforms | ZKBio CVSecurity, ZKBio Access IVS, AntarVis 2.0 |
| Power | DC 48 V / 1.5 A |
| Power Use | ≤24 W (no HDD) |
| Operating Temp | −10 °C to 55 °C |
| Humidity (Op./Storage) | 0–90 % / 30–80 % RH |
| Altitude | ≤3,000 m |
| Dimensions (L×W×H) | 255 × 210 × 43 mm |
| Net / Gross Weight | 2.8 kg / 3.3 kg (without HDD) |
| Certifications | ISO 9001, ISO 14001, CE, FCC |
Why Choose ZKTeco Z8504NEQ-4P-S
4 PoE ports simplify camera installation
AI-powered human/vehicle detection improves search efficiency
Compact, fan-free 1U housing for quiet operation
Smart search for quick evidence retrieval
