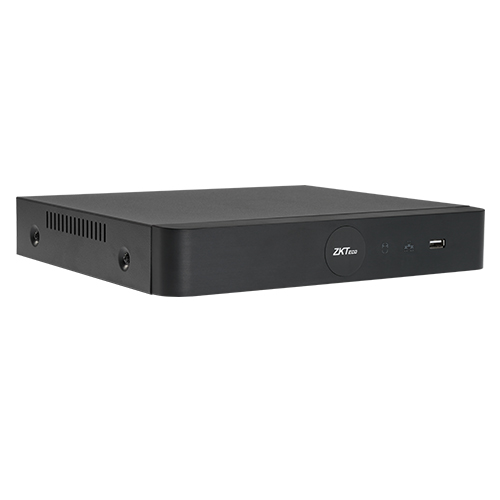

ZKTeco Z8504NEQ-S 4CH BioSense NVR
KSh 48,000.00
ZKTeco Z8504NEQ-S 4CH BioSense NVR
| Channels | 4 |
| Max Resolution | 8 MP |
| Storage | 1 × SATA (up to 8 TB) |
| Codec | H.265 / H.264 |
| Display | HDMI 4K / VGA |
ZKTeco Z8504NEQ-S 4CH BioSense NVR
The ZKTeco Z8504NEQ-S is a compact 4-channel BioSense Network Video Recorder with support for up to 8MP video, smart IVA, and efficient 24/7 recording. Its streamlined 1U design makes it ideal for schools, offices, communities, and other small-to-medium surveillance setups.
Key Features
-
4-Channel Recording up to 8MP
Handles ultra-HD 3840×2160 streams with smooth playback. -
Smart IVA Analytics
Line crossing, area detection, target counting, and human/vehicle classification. -
Flexible Recording Modes
Manual, schedule, motion detection, or IVA-triggered capture with pre/post recording. -
Smart Search & Playback
Quickly locate footage by people or vehicle filters; supports snapshots and backup. -
4K HDMI & VGA Outputs
Clear display options for monitoring and configuration.
Specifications
| Feature | Specification |
|---|---|
| Model | Z8504NEQ-S |
| Processor | Multi-core embedded CPU |
| OS | Embedded Linux |
| Interface | Local GUI & web browser |
| Video Input | 4 IP channels |
| Audio | 4 in (via IPC) / 1 out |
| Two-way Talk | Supported |
| Max Resolution | 8MP (3840×2160) |
| Compression | H.265 / H.264 |
| Recording Resolutions | 8MP / 5MP / 3MP / 1080P / 960P / 720P / D1 / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Max Decoding | 4CH@8MP (25/30 fps) |
| Bandwidth (In/Out) | 40 Mbps / 40 Mbps |
| Bit Rate | 16 Kbps–8192 Kbps (main), 50–700 Kbps (sub) |
| Playback Channels | 4 synchronous |
| Backup | USB / network |
| Storage | 1 × SATA, up to 8 TB |
| PoE | N/A |
| Display Outputs | HDMI (4K), VGA (1920×1080 / 1280×1024) |
| USB Ports | 3 × USB 2.0 |
| Network | 1 RJ-45 (10/100 Mbps); protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket, P2P |
| Max Online Users | 20 |
| Mobile App | AntarView Pro+ (iOS/Android) |
| Management Platforms | ZKBio CVSecurity, ZKBio Access IVS, AntarVis 2.0 |
| Power | DC 12 V / 2 A |
| Power Use | ≤24 W (no HDD) |
| Operating Temp | −10 °C to 55 °C |
| Humidity (Op./Storage) | 0–90 % / 30–80 % RH |
| Altitude | ≤3,000 m |
| Dimensions (L×W×H) | 255 × 210 × 43 mm |
| Net / Gross Weight | 2.8 kg / 3.3 kg (without HDD) |
| Certifications | ISO 9001, ISO 14001, CE, FCC |
Why Choose ZKTeco Z8504NEQ-S
-
4-channel UHD recording with AI-powered analytics
-
Smart search to pinpoint key footage
-
HDMI 4K and VGA for flexible display options
-
Fan-free 1U housing for quiet, low-power use
