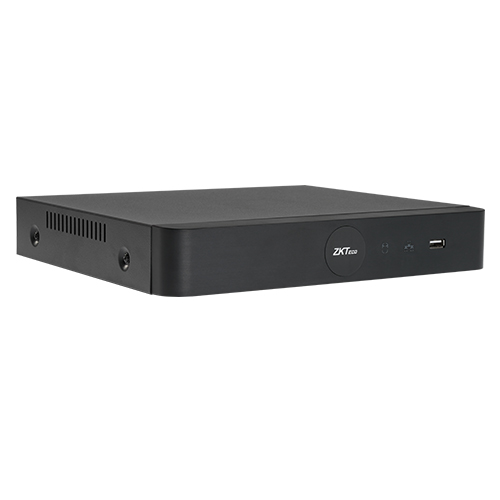

ZKTeco Z8508NEQ-S 8-CH BioSense Network Video Recorder
KSh 45,000.00
ZKTeco Z8508NEQ-S 8-CH BioSense Network Video Recorder
| Channels | 8 |
| Max Resolution | 5 MP |
| Storage | 1 × SATA (up to 8 TB) |
| Video Codec | H.265 / H.264 |
| Playback | 4CH synchronous |
ZKTeco Z8508NEQ-S 8-CH BioSense Network Video Recorder
The ZKTeco Z8508NEQ-S is an AI-powered BioSense NVR designed for efficient 24/7 security. Supporting 8 channels up to 5 MP, smart IVA alarms, and fast playback, it’s ideal for schools, offices, industrial parks, communities, and public security applications.
Key Features
8-Channel HD Recording
Supports up to 5 MP resolution on eight IP channels.AI-Based IVA Detection
Human/vehicle classification, line crossing, area detection, object lost/left.Flexible Recording Modes
Schedule, manual, motion, or IVA-based alarms with pre/post recording.Smart Search & Playback
Filter by people or vehicles, use fast/slow play or snapshots.Compact 1U Design
Low-power fan-free build for desktops or cabinet mounting.
Specifications
| Feature | Specification |
|---|---|
| Model | Z8508NEQ-S |
| Processor | Multi-core embedded CPU |
| OS | Embedded Linux |
| Video Input | 8 IP channels |
| Audio Input / Output | 8 (via IPC) / 1 |
| Two-way Talk | Supported |
| Display Output | HDMI (1920×1080) & VGA |
| Max Resolution | 5 MP (2592×1944) |
| Compression | H.265 / H.264 |
| Recording Resolutions | 5 MP / 3 MP / 1080P / 960P / 720P / D1 / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Max Decoding | 8CH@5 MP (25/30 fps) |
| Bandwidth (In/Out) | 60 Mbps / 60 Mbps |
| Bit Rate | 16 Kbps–8192 Kbps (main), 50–700 Kbps (sub) |
| Playback Channels | 4 synchronous |
| Backup | USB / network |
| Storage | 1 × SATA, up to 8 TB |
| PoE Ports | None |
| Network Protocols | TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, RTSP, NTP, SMTP, SSL/TLS, SNMP, P2P, etc. |
| Web Browsers | Chrome, Edge, Firefox, Safari, Opera |
| Mobile App | AntarView Pro+ (iOS & Android) |
| Management Platforms | ZKBio CVSecurity, ZKBio Access IVS, AntarVis 2.0 |
| USB Ports | 3 × USB 2.0 |
| Power Supply | DC 12 V / 2 A |
| Power Consumption | ≤24 W (no HDD) |
| Operating Temp | −10 °C to 55 °C |
| Humidity (Op./Storage) | 0–90 % / 30–80 % RH |
| Dimensions (L×W×H) | 255 × 210 × 43 mm |
| Net / Gross Weight | 2.5 kg / 3 kg (without HDD) |
| Certifications | ISO 9001, ISO 14001, CE, FCC |
Why Choose ZKTeco Z8508NEQ-S
Smart video analytics with people/vehicle filtering
Reliable 8-channel HD recording up to 5 MP
Compact 1U body for easy installation
Low-power, silent cooling design
Supports ONVIF, browsers, and mobile apps
