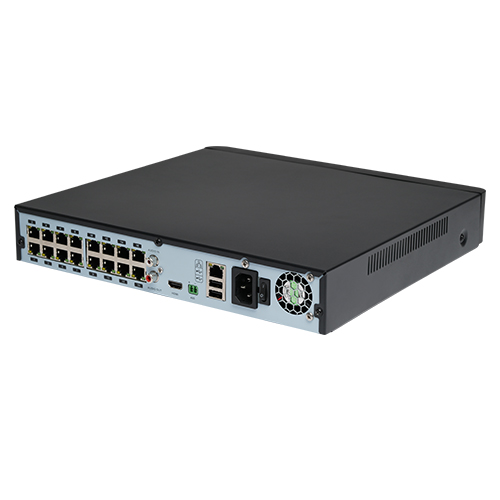

ZKTeco Z8516NFR-16P-S 16-CH PoE Network Video Recorder
KSh 39,000.00
ZKTeco Z8516NFR-16P-S 16-CH PoE Network Video Recorder
| Channels | 16 PoE |
| Max Resolution | 8MP UHD |
| Compression | H.265+/H.265/H.264 |
| Storage | 2×SATA (8 TB each) |
| Ports | HDMI 4K, VGA, USB, 16×PoE |
ZKTeco Z8516NFR-16P-S 16-CH PoE Network Video Recorder
The ZKTeco Z8516NFR-16P-S is a professional 16-channel PoE NVR designed for high-definition video recording and AI-powered analytics, ideal for schools, offices, industrial parks, and public security.
Key Features
16-Channel PoE Support
Connect up to 16 IP cameras with built-in PoE, simplifying installation.AI-Enhanced Video Analytics
Human/vehicle classification, line crossing, smart motion detection, and object management.Ultra HD Recording & Playback
Records up to 8MP resolution with H.265+ compression for efficient storage.Versatile Backup & Search
USB/network backup plus smart search filters for quick evidence retrieval.Robust Build & Connectivity
Dual USB, HDMI 4K, VGA, and 2×SATA bays (up to 8TB each).
Specifications
| Feature | Specification |
|---|---|
| Model | Z8516NFR-16P-S |
| Processor | Multi-core embedded CPU |
| Operating System | Embedded Linux |
| Video Input | 16 IP channels |
| Two-way Audio | Supported |
| Video Compression | H.265+, H.265, H.264 |
| Max Resolution | 8MP (3840×2160) |
| Recording Bandwidth | 80 Mbps (incoming/outgoing) |
| Playback | 16CH synchronous, smart search |
| Storage | 2×SATA (up to 8 TB each) |
| PoE Ports | 16×10/100 Mbps (IEEE802.3af/at) |
| Network Interface | 1×RJ-45 (10/100/1000 Mbps) |
| USB Ports | 3×USB 2.0 |
| Display Output | HDMI (4K), VGA (1080p) |
| Power Supply | DC 52V/4.6A |
| Power Consumption | 20 W (NVR only), 15 W/PoE port |
| Operating Temp | −10 °C to 55 °C |
| Dimensions (L×W×H) | 325×246×50 mm |
| Weight | 3 kg (without HDD) |
| Certifications | ISO9001, ISO14001, CE, FCC |
Why Choose ZKTeco Z8516NFR-16P-S
Plug-and-play PoE for fast camera setup
8MP recording with efficient H.265+ codec
Smart AI events: people, vehicles, objects
Dual-drive storage up to 16 TB total
Durable 1.5U metal casing for desktop or rack use
