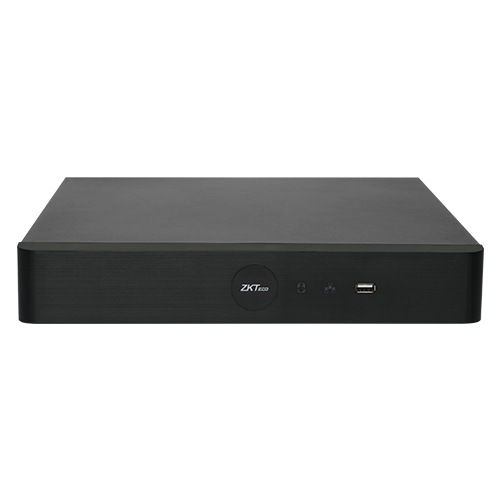

ZKTeco Z8516NFR-S 16-CH BioSense Network Video Recorder
KSh 38,000.00
ZKTeco Z8516NFR-S 16-CH BioSense Network Video Recorder
| Model | Z8516NFR-S |
| Channels | 16 |
| Max Resolution | 8 MP (3840×2160) |
| Storage | 2× SATA, up to 8 TB each |
| Video Outputs | HDMI 4K, VGA |
| Compression | H.265+/H.265/H.264 |
| Analytics | Human/Vehicle IVA, Line Crossing, Object Lost/Left |
ZKTeco Z8516NFR-S 16-CH BioSense Network Video Recorder
The Z8516NFR-S is a 16-channel NVR from ZKTeco’s BioSense series. Featuring an embedded Linux OS, deep-learning video analytics, and high-bandwidth recording, it’s designed to store and manage up to 16 IP camera streams with precision—ideal for offices, campuses, industrial parks, and public-safety projects.
Key Features
16-Channel Recording
Supports up to 16 IP cameras with 24/7 recording and intelligent alarm storage.Deep-Learning Analytics
Human/vehicle classification, smart search, and IVA alarms enhance investigation efficiency.4K HDMI & VGA Output
Crisp live-view and playback on up to 4K displays.Flexible Playback & Backup
Synchronous 16-channel playback with snapshot, USB, or network backup.Reliable Storage & Build
Dual SATA bays (up to 8 TB each), low power draw, and sturdy 1.5U housing.
Specifications
| Feature | Specification |
|---|---|
| Model | Z8516NFR-S |
| Main Processor | Multi-core embedded CPU |
| Operating System | Embedded Linux |
| Max IPC Input | 16 channels |
| Video Compression | H.265+, H.265, H.264 |
| Max Resolution | 8 MP |
| Display Output | HDMI (4K), VGA (1920×1080/60 Hz) |
| Decoding Capability | 16 CH @ D1 (25/30 fps) |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Recording Modes | Schedule, Manual, Motion, IVA Alarm |
| Playback | 16 CH sync playback, fast/slow, snapshot |
| IVA Functions | Line Crossing, Area Detection, Motion (human/vehicle), Target Counting, Object Lost/Left |
| Storage | 2× SATA (≤8 TB each) |
| USB Ports | 3× USB 2.0 |
| Network Protocols | TCP/IP, HTTP/HTTPS, FTP, DHCP, RTSP, DDNS, NTP, UPnP, SMTP, IPv4, SSL/TLS, P2P |
| Interoperability | ONVIF S/G, SDK, CGI, API |
| Management Software | ZKBio CVSecurity, ZKBio Access IVS, AntarVis 2.0 |
| Mobile App | AntarView Pro+ (iOS/Android) |
| Power Supply | DC 12 V / 3 A |
| Power Consumption | ≤24 W (no HDD) |
| Operating Temp | –10 °C ~ 55 °C |
| Humidity | 0 – 90% RH (non-condensing) |
| Dimensions (L×W×H) | 325 × 246 × 50 mm |
| Net / Gross Weight | 3 kg / 3.5 kg (without HDD) |
| Certifications | ISO 14001, ISO 9001, CE, FCC |
Why Choose ZKTeco Z8516NFR-S
Advanced deep-learning IVA for quick event searches
Smooth 4K live-view and playback on HDMI or VGA
Efficient, secure storage with dual SATA bays
Supports major ONVIF-compatible IP cameras
Energy-saving, robust build for professional installations
