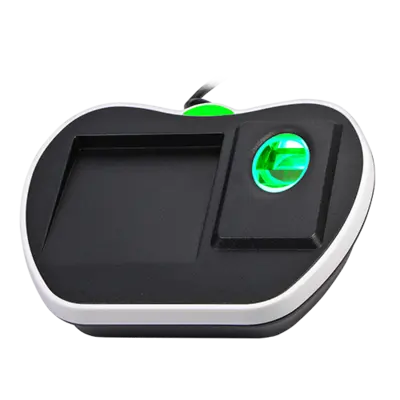

ZKTeco ZK8500R USB Fingerprint Scanner & Card Issuer
The ZKTeco ZK8500R is a versatile USB fingerprint scanner and card issuing device that simplifies and speeds up the process of registering fingerprints and card numbers in ZKTeco systems. It can capture high-quality fingerprint images and read ID/Mifare card serial numbers directly, uploading them to the system via USB.
Key Features
All-in-One Functionality
Combines fingerprint scanning and ID/Mifare card reading in one device, reducing the need for multiple units.High-Performance Optical Sensor
Delivers fast and accurate fingerprint capture with a 500 dpi resolution.Developer-Friendly SDK
Includes integration support for custom software development.USB Plug-and-Play
Simple connection to PCs through USB 2.0 / 1.1 / 1.0 with direct power supply via USB.Durable & Reliable Design
Operates under sunlight, tolerates wet/dry fingerprints, and withstands water splashes.
Specifications
Feature | Specification |
---|---|
Model Name | ZK8500R |
Sensor Type | Optical, 0.3 MP CMOS |
CPU | 120 MHz DSP |
Flash Memory | 16 KB |
OS Kernel | RTOS |
Image Resolution | 500 dpi |
Image Size | 280 × 360 pixels |
Effective Capture Area | 13.24 × 15.7 mm |
Capture Area | 15.4 × 18 mm |
Gray Level | 256 |
Card Reader Support | 125KHz EM & 13.56MHz Mifare |
Communication | USB 2.0 / 1.1 / 1.0 |
Interface Socket | USB Type-A |
LED Indicator | Green |
Power Supply | 5V (USB) |
Power Consumption | 300 mA |
Operating System Support | Windows 2000 / XP / 2003 / Vista / 7 / 8 (32/64-bit) |
Environmental Resistance | Sunlight operation, water splash, general wet/dry/rough finger handling |
Operating Temperature | -20 °C to +50 °C, ≤90% RH |
Dimensions (L × W × H) | 124.5 × 102 × 34 mm |
Weight | 0.27 kg |
Why Choose ZKTeco ZK8500R
Saves cost by replacing multiple devices (ZK4500 + CR10E + CR10M)
Fast fingerprint and card enrollment in large-scale environments
Supports both EM & Mifare cards
USB-powered for easy deployment
Reliable performance under varied environmental conditions
