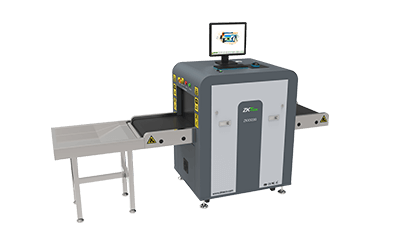

ZKTeco ZKX5030C Dual-Energy X-Ray Inspection System
KSh 2,900,000.00
ZKTeco ZKX5030C Dual-Energy X-Ray Inspection System
| Tunnel Size | 507 × 305 mm |
| Max Load | ≤120 kg |
| Resolution | 38 AWG |
| Penetration | 32 mm steel |
| Dimensions | 1701 × 796 × 1150 mm |
ZKTeco ZKX5030C Dual-Energy X-Ray Inspection System
The ZKTeco ZKX5030C is a compact dual-energy X-ray scanner for briefcases, carry-on baggage, and small parcels. Its advanced image algorithm and ergonomic design make it easy for operators to spot potential threats quickly and accurately. Integrated biometric login strengthens system security and simplifies operator access.
Key Features
Dual-Energy X-Ray Imaging
High-quality generator with enhanced algorithm for sharp, clear images.Secure Operator Access
Biometric identification eliminates password management issues.Versatile Screening
Handles baggage, parcels, and other small cargo efficiently.Ergonomic & Efficient
21.5″ LED monitor, modern design, and 0.20 m/s belt speed streamline workflow.Comprehensive System Tools
Density alarms, TIP training, 64× zoom, and luggage counters for enhanced analysis.
Specifications
| Feature | Specification |
|---|---|
| Tunnel Size | 507 × 305 mm |
| Conveyor Speed | 0.20 m/s |
| Belt Height | 730 mm |
| Max Load | ≤120 kg (evenly distributed) |
| Wire Resolution | 38 AWG (0.1 mm wire) |
| Space Definition | H: Ø1.0 mm / V: Ø2.0 mm |
| Penetrate Definition | 32 AWG |
| Penetration | 32 mm steel board |
| Monitor | 21.5″ LED |
| Functions | Density alarm, Explosive/Drug assist, TIP, Zoom (64×), Counters, Timers, Training |
| Film Safety | ASA / ISO1600 compliant |
| Software Support | ZKBio SIS |
| Tube Voltage | 140 kV |
| Interface | RJ45 (TCP/IP) |
| Cooling | Sealed oil cooling, 100% duty |
| X-Ray Dosage | ≤1.0 μGy per scan |
| Radiation Leak | ≤0.1 μGy/h at 5 cm from surface |
| Dimensions (L×W×H) | 1701 × 796 × 1150 mm |
| Package Size | 1900 × 990 × 1485 mm |
| Package Weight | 450 kg |
| Power Consumption | 1 kVA |
| Noise Level | 53.8 dB(A) |
Why Choose ZKX5030C
High-resolution imaging with dual-energy technology
Streamlined biometric operator authentication
Ideal for baggage, parcels, and small cargo screening
User-friendly interface with TIP and zoom features
Compact footprint with efficient 0.20 m/s belt speed
