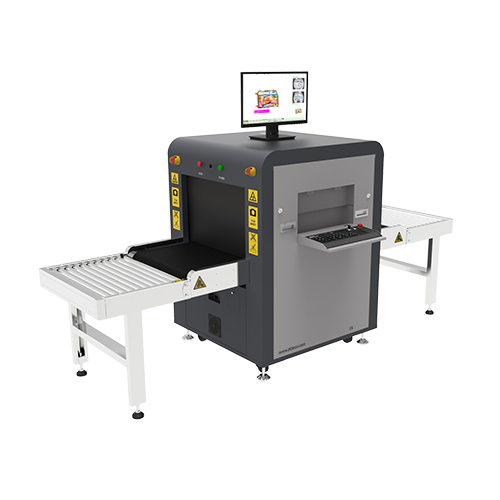

ZKTeco ZKX6040 P3D X-Ray Inspection System
KSh 2,900,000.00
ZKTeco ZKX6040 P3D X-Ray Inspection System
| Model | ZKX6040 P3D |
| Type | 3D X-Ray Baggage Scanner |
| Tunnel | 608 × 405 mm |
| Conveyor | 0.2 m/s |
| Max Load | 180 kg |
| Power | 220 V AC, 700 W |
ZKTeco ZKX6040 P3D X-Ray Inspection System
The ZKX6040 P3D is an advanced 3D X-ray baggage scanner that combines perspective imaging and computer-vision analytics to boost security-screening efficiency. Featuring a 600 × 400 mm tunnel and dual-camera tracking, it’s designed for fast, precise inspection of carry-on bags, parcels, and personal items at airports, stadiums, customs, and other checkpoints.
Key Features
3D Perspective Technology
Delivers clear, layered images to reveal concealed threats with high accuracy.AI & Computer Vision Analytics
Works with ZKBio SIS software to achieve over 90% threat-detection accuracy.Generous Tunnel Opening
608 mm (W) × 405 mm (H) for efficient scanning of bags and small packages.High Load Capacity
Supports up to 180 kg (evenly distributed) with smooth 0.2 m/s conveyor.Professional Image Tools
Includes advanced processing, operator training modules, and auto image/video capture.Low Radiation & Quiet Operation
≤0.3 μGy/h at 5 cm, noise ≤55 dB — safe and comfortable for operators.
Specifications
| Category | Details |
|---|---|
| Model | ZKX6040 P3D |
| Type | 3D X-Ray Baggage Inspection System |
| Tunnel Size (W × H) | 608 × 405 mm |
| Conveyor Speed | 0.2 m/s |
| Max Load | 180 kg (evenly distributed) |
| Conveyor Height | 680 mm |
| Radiation Leak | ≤0.3 μGy/h (5 cm from surface) |
| Software Support | ZKBio SIS |
| Network Interface | RJ45 (TCP/IP) |
| Unit Size (L×W×H) | 1701 × 910 × 1305 mm |
| Package Size | 2200 × 1200 × 1450 mm |
| Weight / Packaged | 380 kg / 480 kg |
| Power Supply | 220 V AC ±15%, 50 Hz ±3% |
| Power Consumption | 700 W |
| Operating Temp | −10 °C ~ +45 °C |
| Storage Temp | −20 °C ~ +60 °C |
| Humidity | 5–95% (non-condensing) |
| Colors in Image | 4 |
| X-Ray Voltage | 80–160 kV (adjustable) |
| Tube Current | 0.3–1.0 mA |
| Penetration | 36 mm steel |
| Wire Resolution | 34 AWG |
| Film Safety | ASA/ISO 1600 |
| Computer | Windows 10, Intel i5-4570 3.6 GHz, 8 GB RAM, 2 TB HDD |
| Display | 21.5″ LED, 1920×1080 |
Why Choose ZKX6040 P3D
3D imaging and analytics for superior detection accuracy
Large tunnel and heavy-duty conveyor for diverse luggage sizes
Safe, low-radiation operation with whisper-quiet performance
Integrates with ZKBio SIS for centralized security management
Built-in operator training and inspection record storage (up to 100,000 images)
