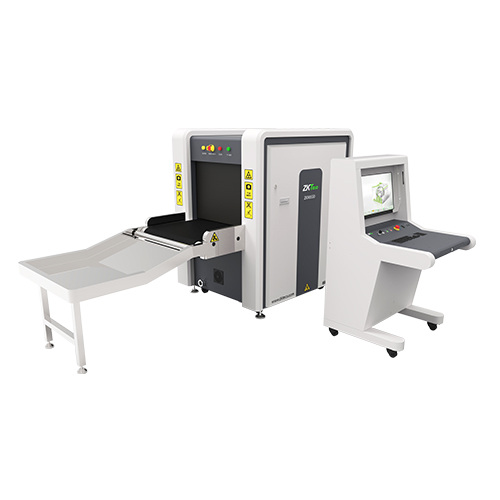

ZKTeco ZKX6550 X-Ray Inspection System
KSh 2,900,000.00
ZKTeco ZKX6550 X-Ray Inspection System
| Model | ZKX6550 |
| Type | X-Ray Baggage Scanner |
| Tunnel | 650 × 500 mm |
| Conveyor | 0.20 m/s |
| Max Load | 180 kg |
| Power | 1 kVA |
ZKTeco ZKX6550 X-Ray Inspection System
The ZKX6550 is a high-performance X-ray inspection solution designed for briefcases, carry-on baggage, and small parcels. Equipped with a reliable dual-energy X-ray generator and an advanced image algorithm, it delivers crisp, detailed scans to help operators quickly identify potential threats. Its biometric operator login enhances security, while an ergonomic design supports long shifts with comfort and accuracy.
Key Features
High-Clarity Imaging
Dual-energy generator and powerful algorithm provide clear visuals of concealed objects.Biometric Operator Authentication
Fingerprint login strengthens system security and avoids password issues.Large Tunnel Opening
650 × 500 mm tunnel handles hand luggage, parcels, and small cargo.Robust Build & Load Capacity
Supports up to 180 kg with smooth 0.20 m/s conveyor.Enhanced Detection Tools
Features TIP, high-density alarm, drug/explosive assist, and 64× digital zoom.Safe & Low Noise
Radiation leakage ≤0.1 μGy/h; quiet 53.8 dB operation.
Specifications
| Category | Details |
|---|---|
| Model | ZKX6550 |
| Type | X-Ray Baggage / Parcel Inspection |
| Tunnel Size (W×H) | 650 × 500 mm |
| Conveyor Speed | 0.20 m/s |
| Belt Height | 700 mm |
| Max Load | 180 kg (evenly distributed) |
| Penetration | 38 mm steel |
| Wire Resolution | 38 AWG |
| Space Definition | H Φ1.0 mm / V Φ2.0 mm |
| Film Safety | ASA/ISO1600 |
| System Functions | High-density alarm, explosives/drug detection, TIP, luggage counter, timers, training |
| Monitor | 21.5″ LED |
| X-Ray Voltage | 140 kV |
| Cooling | Sealed oil cooling, 100% duty |
| Single Dose | ≤1.0 μGy |
| Radiation Leak | ≤0.1 μGy/h (5 cm) |
| Unit Size (L×W×H) | 2120 × 980 × 1381 mm |
| Console Desk Size | 805 × 900 × 1320 mm |
| Package Size | 2240 × 1170 × 1755 mm |
| Weight / Console | 680 kg + 105 kg |
| Power Consumption | 1 kVA |
| Noise | 53.8 dB(A) |
Why Choose ZKX6550
Reliable dual-energy scanning with crystal-clear imagery
Built-in biometric login for operator accountability
Large tunnel supports diverse baggage and parcel sizes
Comprehensive alarms, detection aids, and zoom features
Low radiation and whisper-quiet for operator safety
